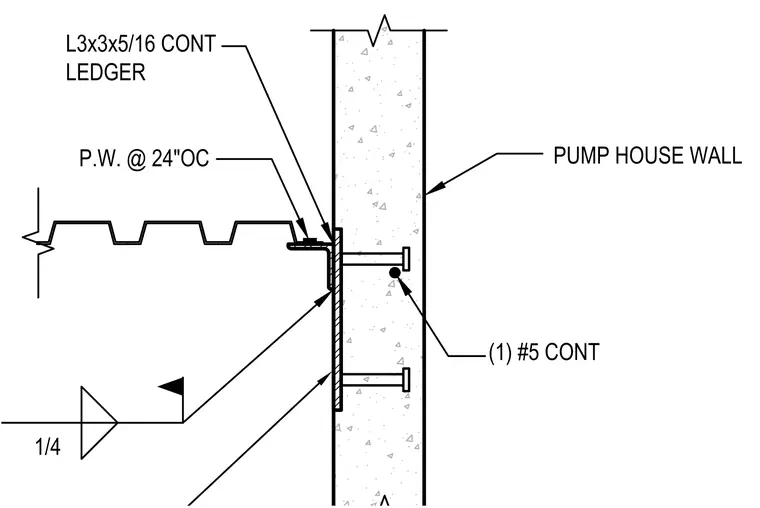

A continuous L3x3x5/16 steel angle ledger is anchored to the face of a concrete pump house wall. The ledger is secured to the wall with embedded anchors and reinforced by one continuous number 5 reinforcing bar. The metal roof deck is fastened to the horizontal leg of the ledger with powder-actuated fasteners spaced at 24 inches on center. A 1/4 inch fillet weld connects the vertical leg of the angle to an embedded steel plate within the concrete wall.
