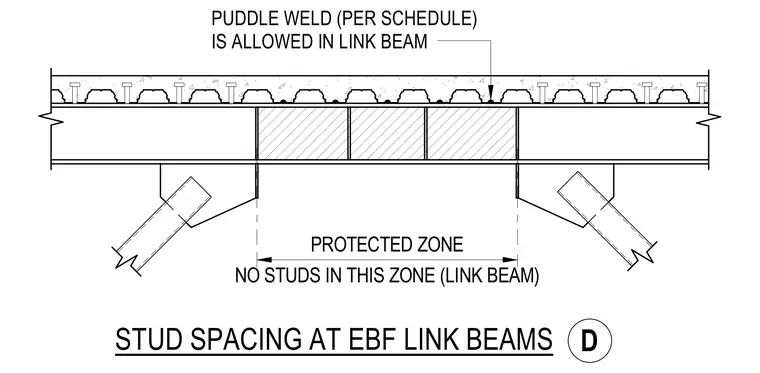

Shear studs are installed along the composite steel beam outside the designated protected zone of the eccentrically braced frame link beam. No studs are permitted within the protected zone of the link beam. Puddle welds are permitted per schedule to secure the metal deck directly to the link beam flange in this zone.
PUDDLE WELD (PER SCHEDULE) IS ALLOWED IN LINK BEAM STUD SPACING AT EBF LINK BEAMS NO STUDS IN THIS ZONE (LINK BEAM) PROTECTED ZONE D
