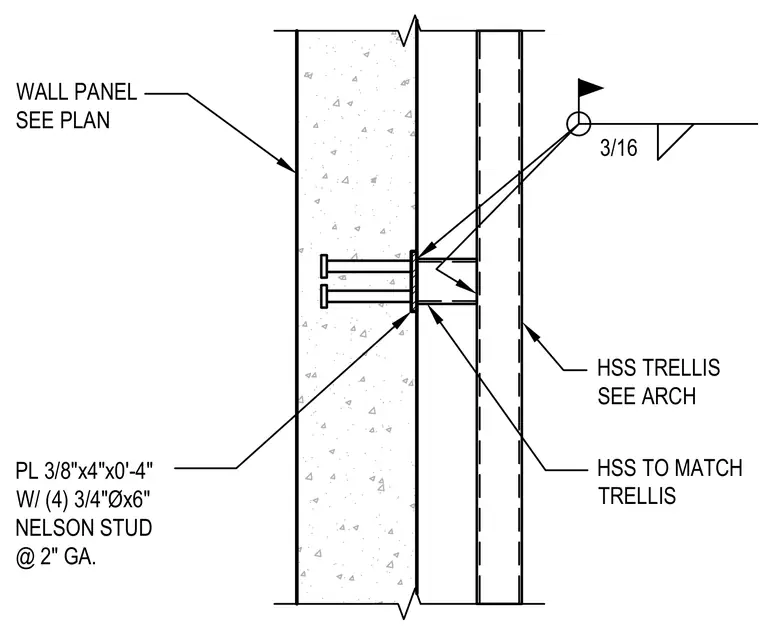

A hollow structural section trellis connects to a concrete wall panel through a three-eighths-inch by four-inch by four-inch steel plate embedded in the concrete. The plate is anchored with four three-quarter-inch diameter by six-inch Nelson studs at a two-inch gauge. The hollow structural section member matches the trellis and is welded to the steel plate with a three-sixteenths-inch fillet weld.
HSS TRELLIS SEE ARCH WALL PANEL SEE PLAN PL 3/8"x4"x0'-4" W/ (4) 3/4"Øx6" NELSON STUD @ 2" GA. HSS TO MATCH TRELLIS 3/16
