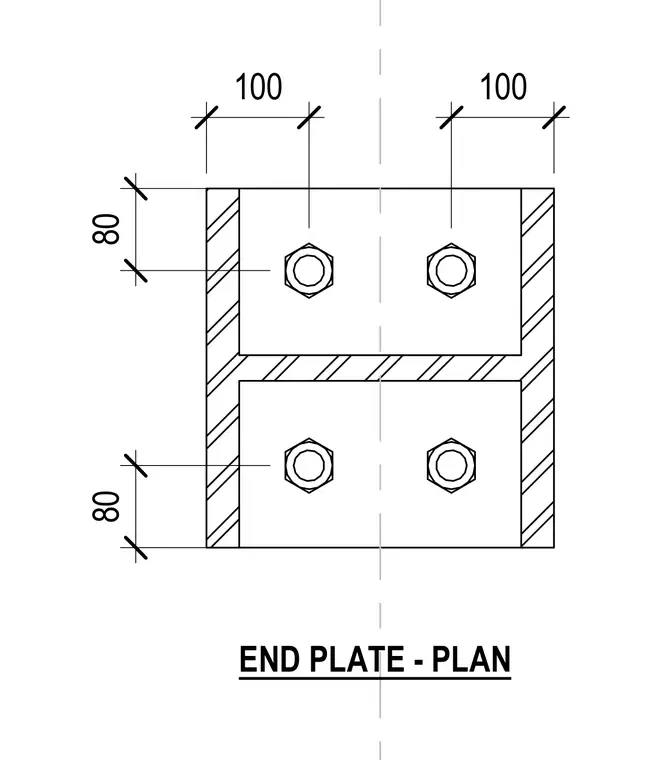

An end plate connection detail is shown in plan view featuring four bolts arranged symmetrically about a centerline. Dimension strings indicate an 80 millimeter vertical spacing and a 100 millimeter horizontal spacing from the member edges. The steel profile is shown sectioned with hatch lines and secured via bolted fasteners.
