Base plates type A and B are anchored with anchor head rods sized per schedule, detailed with six number 5 closed tie four-legged stirrups. Concrete reinforcement is provided per sheet S-602 within a two foot nine inch deep member. Anchor rod spacings and edge distances are dimensioned relative to the grid line.

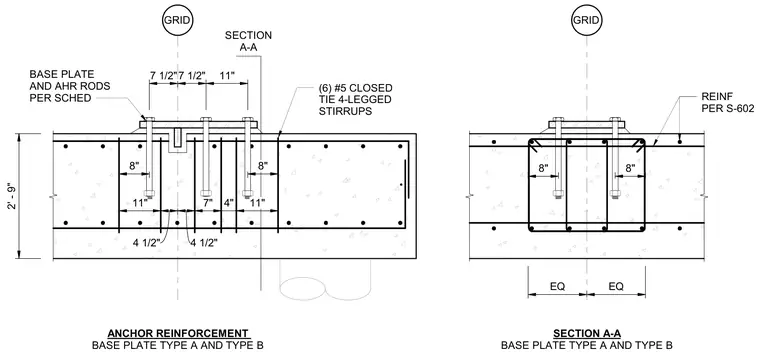

GRID 11" 7 1/2" 7 1/2" 11" 4" 7" 4 1/2" 4 1/2" 11" 8" 8" ANCHOR REINFORCEMENT BASE PLATE TYPE A AND TYPE B (6) #5 CLOSED TIE 4-LEGGED STIRRUPS BASE PLATE AND AHR RODS PER SCHED 2' - 9" GRID 8" 8" SECTION A-A SECTION A-A BASE PLATE TYPE A AND TYPE B REINF PER S-602 EQ EQ
