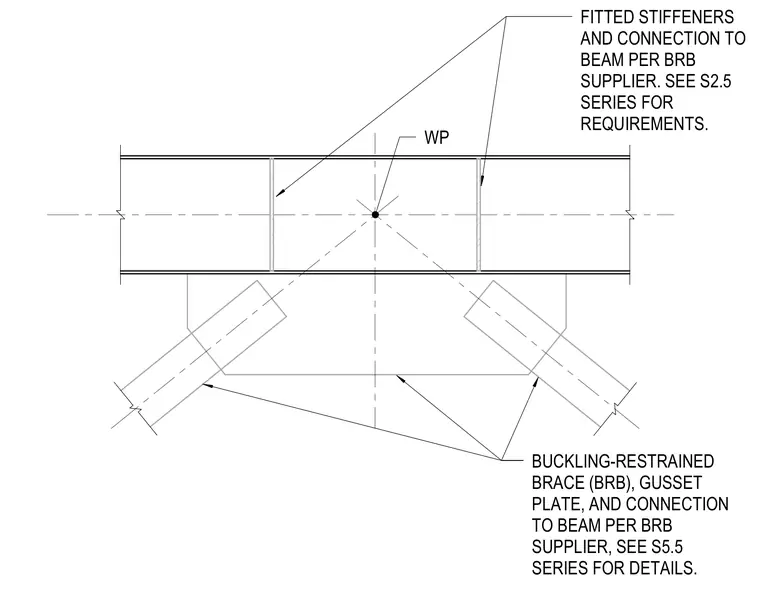

A buckling-restrained brace connects to a structural steel beam via a gusset plate and fitted stiffeners located at the work point. The connection design, including fitted stiffeners and gusset plate configuration, is coordinated per the buckling-restrained brace supplier requirements and referenced drawing series. Working points establish the intersection for the chevron bracing layout.
WP FITTED STIFFENERS AND CONNECTION TO BEAM PER BRB SUPPLIER. SEE S2.5 SERIES FOR REQUIREMENTS. BUCKLING-RESTRAINED BRACE (BRB), GUSSET PLATE, AND CONNECTION TO BEAM PER BRB SUPPLIER, SEE S5.5 SERIES FOR DETAILS.
