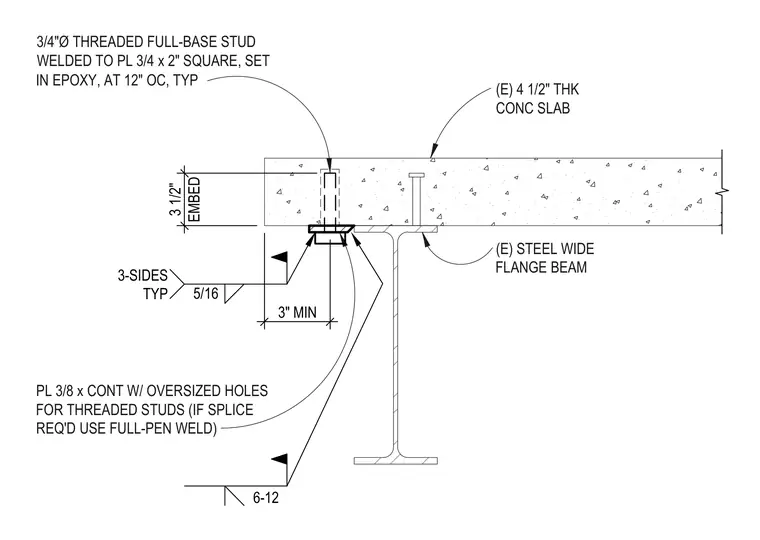

An existing concrete slab four and a half inches thick bears on an existing steel wide flange beam, reinforced for shear transfer using a continuous three-eighths-inch steel plate welded to the beam flange. Three-quarter-inch diameter threaded full-base studs are welded to the plate, set in epoxy with a three-and-a-half-inch embedment into the concrete slab, and spaced at twelve inches on center typically. The continuous plate features oversized holes for the threaded studs, and any required splices utilize a full-penetration weld. Five-sixteenths-inch fillet welds secure the assembly on three sides typically.
(E) STEEL WIDE FLANGE BEAM (E) 4 1/2" THK CONC SLAB 6-12 PL 3/8 x CONT W/ OVERSIZED HOLES FOR THREADED STUDS (IF SPLICE REQ'D USE FULL-PEN WELD) 5/16 3-SIDES TYP 3 1/2" EMBED 3/4"Ø THREADED FULL-BASE STUD WELDED TO PL 3/4 x 2" SQUARE, SET IN EPOXY, AT 12" OC, TYP 3" MIN
