Structural · S-VMMHK

Oversized Anchor Bolt Hole with Weld Washer Detail and Column Schedule

About this detail

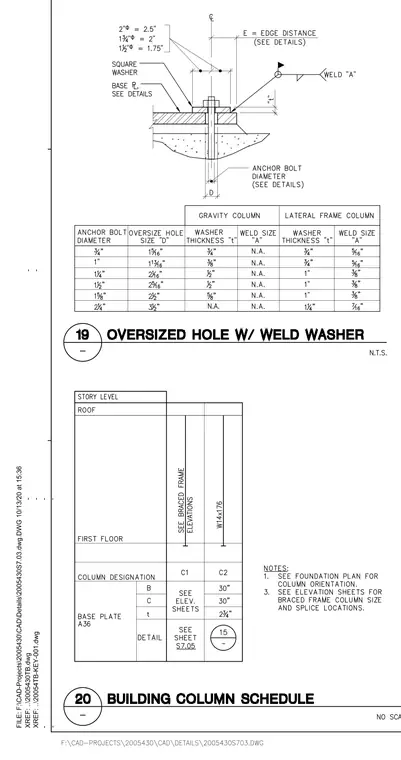

An anchor bolt passes through a base plate containing an oversized hole and a square washer, topped with a weld washer secured by weld "A". Edge distance "E" and anchor bolt diameter "D" are governed per details, with hole sizes, washer thicknesses, and weld sizes varying from three-quarters of an inch to two and one-quarter inches according to the gravity and lateral frame column tables. The accompanying building column schedule details story levels from first floor to roof for columns C1 and C2, specifying base plate designations, dimensions, and referenced sheet locations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
