Structural · S-VMKWB

Seismic Drag Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Bolted Connection

About this detail

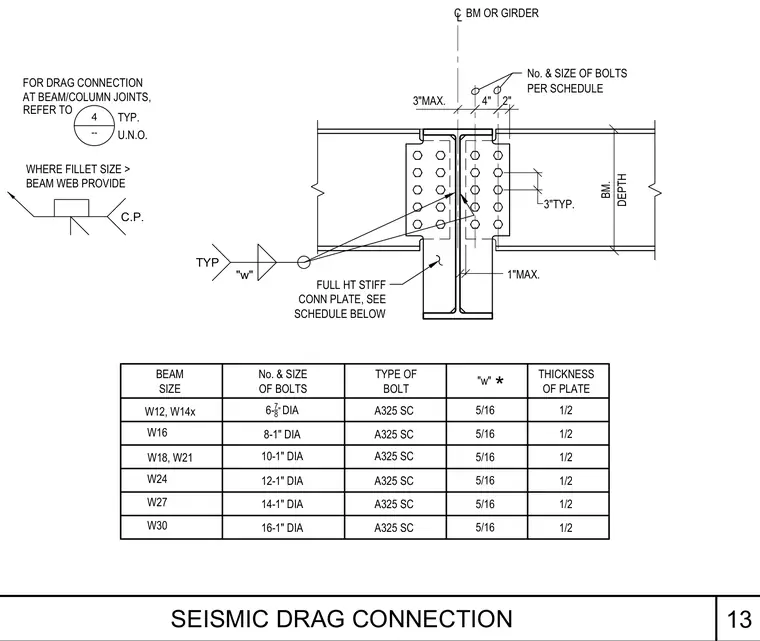

This seismic drag connection detail joins steel beams to a column centerline using high-strength A325 slip-critical bolts and a full-height stiffener connection plate sized per the accompanying schedule. The beam web receives a fillet weld sized per the table values, with specific requirements when the fillet size exceeds the beam web thickness. Bolt counts range from six 7/8-inch diameter bolts for W12 and W14 beams up to sixteen 1-inch diameter bolts for W30 beams, utilizing a 1/2-inch thick connection plate. Spacing is detailed with a 1-inch maximum clearance from the column flange, 3-inch typical vertical spacing, and 4-inch and 2-inch horizontal edge distances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
