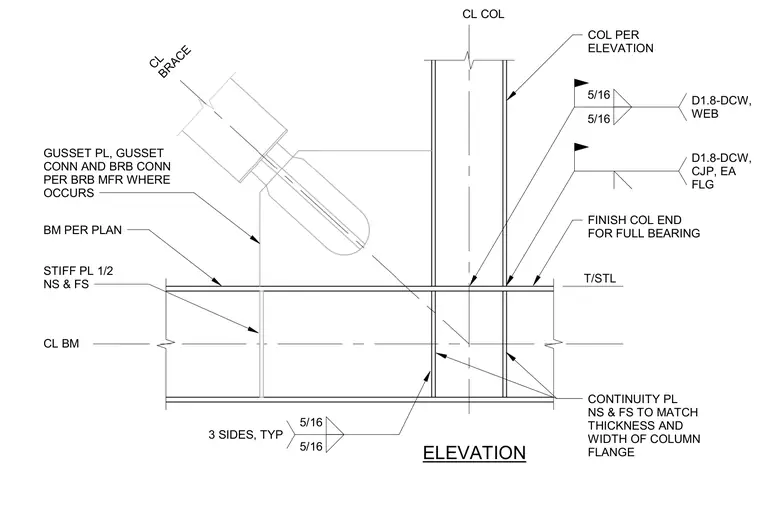

A buckling-restrained brace connects to a transfer beam and column assembly through a gusset plate and manufacturer-specific connection details. The steel column features a finished end for full bearing against the beam, with complete-joint-penetration and fillet welds on the web and flanges per seismic standard D1.8-DCW. Continuity plates on the near side and far side match the thickness and width of the column flange. Additional half-inch stiffener plates are provided on the near side and far side of the beam web, welded on three sides typically.
CL COL GUSSET PL, GUSSET CONN AND BRB CONN PER BRB MFR WHERE OCCURS CL BRACE ELEVATION 5/16 5/16 D1.8-DCW, WEB D1.8-DCW, CJP, EA FLG FINISH COL END FOR FULL BEARING CONTINUITY PL NS & FS TO MATCH THICKNESS AND WIDTH OF COLUMN FLANGE 5/16 5/16 3 SIDES, TYP COL PER ELEVATION BM PER PLAN STIFF PL 1/2 NS & FS CL BM
