Equipment unit model T-LMY1A has a maximum operating weight of six hundred sixty-one pounds and a maximum height above the concrete pad to center of gravity of one foot two inches. Four three-eighths-inch diameter stainless steel Simpson Strong-Bolt 2 anchors secure the unit through holes in the rail or plate per manufacturer specifications. Each anchor requires a two-and-one-half-inch embedment into the concrete. The minimum distance from the center of any anchor to the edge of the slab or construction joint must be six inches.

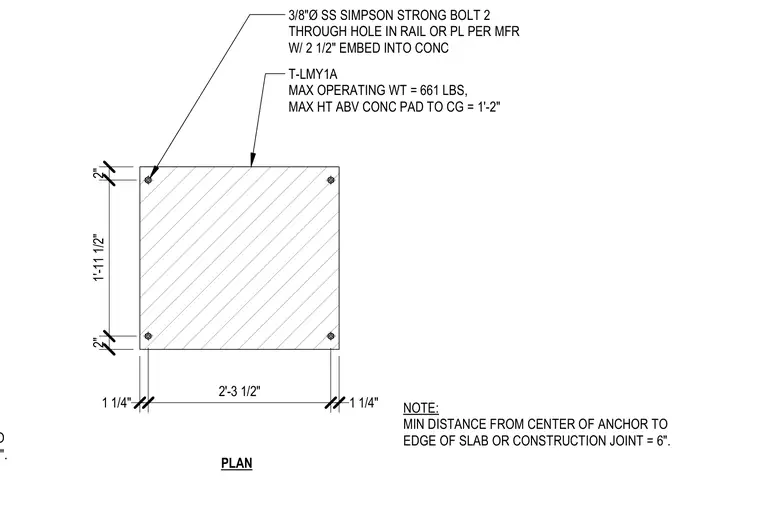

2" 1'-11 1/2" 2" 1 1/4" 2'-3 1/2" 1 1/4" T-LMY1A MAX OPERATING WT = 661 LBS, MAX HT ABV CONC PAD TO CG = 1'-2" 3/8"Ø SS SIMPSON STRONG BOLT 2 THROUGH HOLE IN RAIL OR PL PER MFR W/ 2 1/2" EMBED INTO CONC NOTE: MIN DISTANCE FROM CENTER OF ANCHOR TO EDGE OF SLAB OR CONSTRUCTION JOINT = 6". PLAN MIN DISTANCE FROM CENTER OF ANCHOR TO EDGE OF SLAB OR CONSTRUCTION JOINT = 6".
