Structural · S-VMCBR

Built-Up Wide Flange Schedule and Edge Beam Detail

Materials

Concrete Steel

Elements

Beams Roofs Floors / Slabs Decks Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

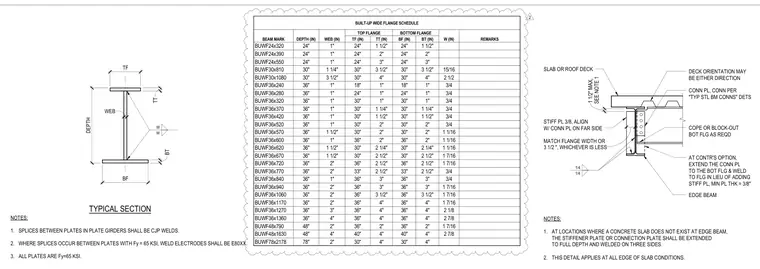

A typical section of a built-up wide flange member detailing the web, top flange, and bottom flange dimensions along with a comprehensive schedule of built-up wide flange beam marks, depths, and plate sizes. The edge beam connection detail features a slab or roof deck bearing on a wide flange edge beam with a connection plate and a three-eighths inch stiffener plate aligned with the connection plate on the far side. Where a concrete slab does not exist at the edge beam, the stiffener plate or connection plate extends to the full depth and is welded on three sides. Splices between plates in plate girders require complete joint penetration welds using E80XX electrodes for plates with a yield strength of sixty-five ksi.

1 1/2" MAX, 1/4 1/4 NOTES: 1. AT LOCATIONS WHERE A CONCRETE SLAB DOES NOT EXIST AT EDGE BEAM, THE STIFFENER PLATE OR CONNECTION PLATE SHALL BE EXTENDED TO FULL DEPTH AND WELDED ON THREE SIDES. 2. THIS DETAIL APPLIES AT ALL EDGE OF SLAB CONDITIONS. AT CONTR'S OPTION, EXTEND THE CONN PL TO THE BOT FLG & WELD TO FLG IN LIEU OF ADDING STIFF PL, MIN PL THK = 3/8" COPE OR BLOCK-OUT BOT FLG AS REQD CONN PL, CONN PER "TYP STL BM CONNS" DETS DECK ORIENTATION MAY BE EITHER DIRECTION EDGE BEAM SLAB OR ROOF DECK SEE NOTE 1 STIFF PL 3/8, ALIGN W/ CONN PL ON FAR SIDE 4 1/4" MATCH FLANGE WIDTH OR 3 1/2 ", WHICHEVER IS LESS 15" 1 1/2" 37 1/4" 1 1/2" 22 5/8" 1 1/2" W W TYPICAL SECTION TF WEB TT DEPTH BF BT NOTES: 1. SPLICES BETWEEN PLATES IN PLATE GIRDERS SHALL BE CJP WELDS. 2. WHERE SPLICES OCCUR BETWEEN PLATES WITH Fy = 65 KSI, WELD ELECTRODES SHALL BE E80XX. 3. ALL PLATES ARE Fy=65 KSI. BUILT-UP WIDE FLANGE SCHEDULE BEAM MARK DEPTH (IN) WEB (IN) TOP FLANGE BOTTOM FLANGE W (IN) REMARKS TF (IN) TT (IN) BF (IN) BT (IN) BUWF24x320 24" 1" 24" 1 1/2" 24" 1 1/2" BUWF24x390 24" 1" 24" 2" 24" 2" BUWF24x550 24" 1" 24" 3" 24" 3" BUWF30x810 30" 1 1/4" 30" 3 1/2" 30" 3 1/2" 15/16 BUWF30x1080 30" 3 1/2" 30" 4" 30" 4" 2 1/2 BUWF36x240 36" 1" 18" 1" 18" 1" 3/4 BUWF36x280 36" 1" 24" 1" 24" 1" 3/4 BUWF36x320 36" 1" 30" 1" 30" 1" 3/4 BUWF36x370 36" 1" 30" 1 1/4" 30" 1 1/4" 3/4 BUWF36x420 36" 1" 30" 1 1/2" 30" 1 1/2" 3/4 BUWF36x520 36" 1" 30" 2" 30" 2" 3/4 BUWF36x570 36" 1 1/2" 30" 2" 30" 2" 1 1/16 BUWF36x600 36" 1" 36" 2" 36" 2" 1 1/16 BUWF36x620 36" 1 1/2" 30" 2 1/4" 30" 2 1/4" 1 1/16 BUWF36x670 36" 1 1/2" 30" 2 1/2" 30" 2 1/2" 1 7/16 BUWF36x720 36" 2" 36" 2 1/2" 36" 2 1/2" 1 7/16 BUWF36x770 36" 2" 33" 2 1/2" 33" 2 1/2" 3/4 BUWF36x840 36" 1" 36" 3" 36" 3" 3/4 BUWF36x940 36" 2" 36" 3" 36" 3" 1 7/16 BUWF36x1060 36" 2" 36" 3 1/2" 36" 3 1/2" 1 7/16 BUWF36x1170 36" 2" 36" 4" 36" 4" 1 7/16 BUWF36x1270 36" 3" 36" 4" 36" 4" 2 1/8 BUWF36x1360 36" 4" 36" 4" 36" 4" 2 7/8 BUWF48x790 48" 2" 36" 2" 36" 2" 1 7/16 BUWF48x1630 48" 4" 40" 4" 40" 4" 2 7/8 BUWF78x2178 78" 2" 30" 4" 30" 4" 2
