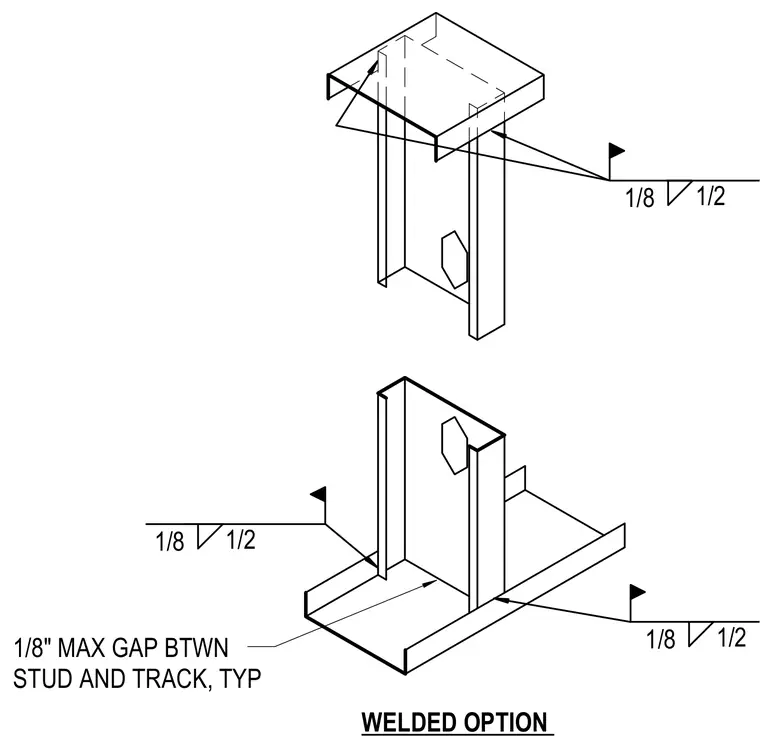

Cold-formed steel studs connect to top and bottom tracks using specified fillet welds along the web and flange junctions. A maximum gap of one-eighth inch is maintained between the stud and track profile typically. Weld symbols indicate field welding requirements with specific sizing and configuration annotations.
