Structural steel beam web penetrations feature reinforcing plates and pipe sleeves for both round and rectangular openings. A schedule forty pipe sleeve matches the flange width for round penetrations, while rectangular openings use horizontal and vertical plates welded to the web and flanges with five-sixteenth inch fillet welds. Half-inch thick plates are positioned on each side of the beam web for reinforcement, with dimensions sized relative to the opening diameter and beam geometry. General notes restrict beam penetrations to locations specifically shown on plans or approved by the structural engineer.

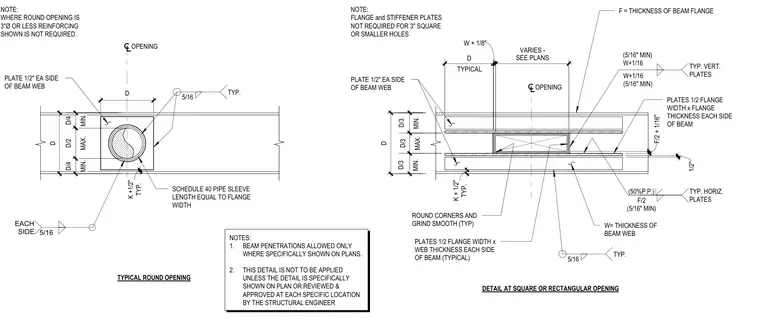

SCHEDULE 40 PIPE SLEEVE LENGTH EQUAL TO FLANGE WIDTH OPENING PLATES 1/2 FLANGE WIDTH x WEB THICKNESS EACH SIDE OF BEAM (TYPICAL) W+1/16 (5/16" MIN) (5/16" MIN) W+1/16 W= THICKNESS OF BEAM WEB ROUND CORNERS AND GRIND SMOOTH (TYP) TYPICAL ROUND OPENING DETAIL AT SQUARE OR RECTANGULAR OPENING PLATES 1/2 FLANGE WIDTH x FLANGE THICKNESS EACH SIDE OF BEAM 1. 2. NOTES: BEAM PENETRATIONS ALLOWED ONLY WHERE SPECIFICALLY SHOWN ON PLANS. THIS DETAIL IS NOT TO BE APPLIED UNLESS THE DETAIL IS SPECIFICALLY SHOWN ON PLAN OR REVIEWED & APPROVED AT EACH SPECIFIC LOCATION BY THE STRUCTURAL ENGINEER NOTE: FLANGE and STIFFENER PLATES NOT REQUIRED FOR 3" SQUARE OR SMALLER HOLES TYP. VERT. PLATES D MIN. D/3 MAX. D/3 MIN. D/3 5/16 EACH SIDE OPENING NOTE: WHERE ROUND OPENING IS 3"Ø OR LESS REINFORCING SHOWN IS NOT REQUIRED. D MIN. D/4 MAX. D/2 MIN. D/4 D PLATE 1/2" EA SIDE OF BEAM WEB TYP. K +1/2" 5/16 TYP. 5/16 TYP. PLATE 1/2" EA SIDE OF BEAM WEB W + 1/8" TYPICAL D VARIES - SEE PLANS F = THICKNESS OF BEAM FLANGE TYP. K + 1/2" F/2 + 1/16" 1/2" TYP. HORIZ. PLATES F/2 (5/16" MIN) (50%P.P.)
