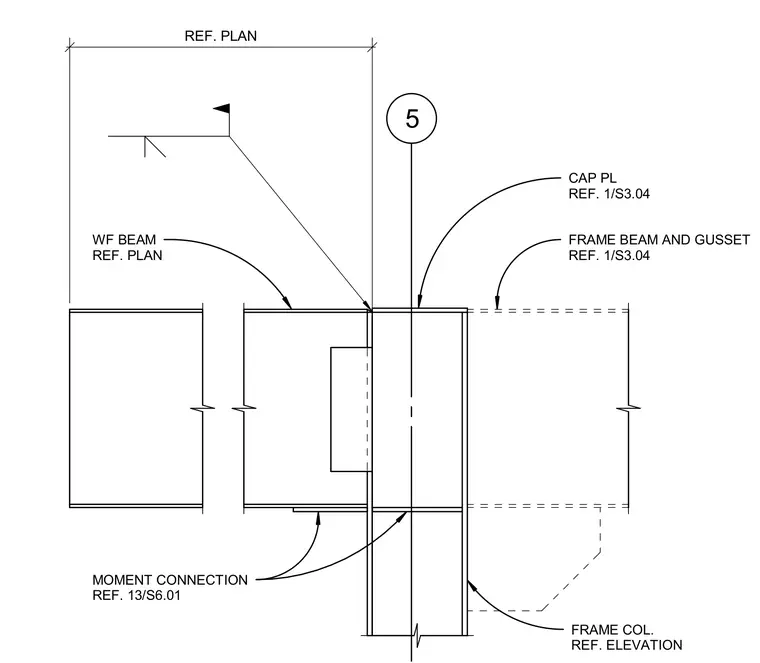

A wide-flange beam connects to a braced frame column using a moment connection and a cap plate. The assembly includes a frame beam and gusset plate referenced to another sheet, along with a frame column detailed in elevation. The beam flange welds to the column face, and the joint references specific structural details for plan and elevation layout.
CAP PL REF. 1/S3.04 FRAME BEAM AND GUSSET REF. 1/S3.04 FRAME COL. REF. ELEVATION MOMENT CONNECTION REF. 13/S6.01 REF. PLAN WF BEAM REF. PLAN 5
