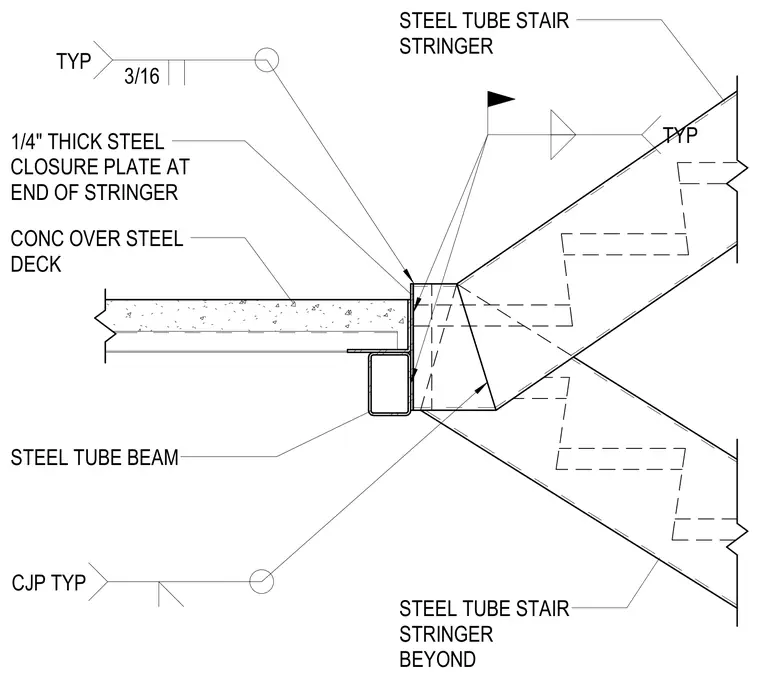

A steel tube stair stringer frames into a structural steel tube beam supporting a concrete over steel deck floor assembly. The end of the stair stringer is capped with a one-quarter-inch thick steel closure plate welded with typical complete joint penetration welds and three-sixteenth-inch fillet welds. Additional steel tube stair stringers are visible beyond in the elevation view.
CONC OVER STEEL DECK STEEL TUBE STAIR STRINGER BEYOND STEEL TUBE BEAM STEEL TUBE STAIR STRINGER 1/4" THICK STEEL CLOSURE PLATE AT END OF STRINGER 3/16 TYP CJP TYP TYP
