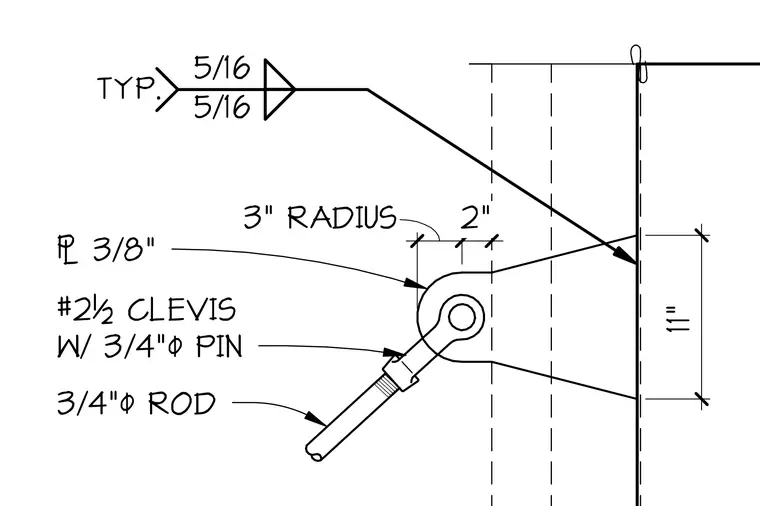

A three-eighths-inch plate connects to a structural member using five-sixteenths-inch fillet welds on typical sides. A number two-and-a-half clevis attaches to the plate with a three-quarter-inch diameter pin. A three-quarter-inch diameter threaded rod threads into the clevis. Dimensions include a three-inch radius on the plate and an eleven-inch vertical dimension across the connection height.
11" 3" RADIUS 2" 5/16 5/16 TYP. 3/4") ROD & 3/8" #2½ CLEVIS W/ 3/4") PIN
