Structural · S-VKZVB

Exterior Foundation Wall at Existing Footing

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds

Connections

Embed Plate

About this detail

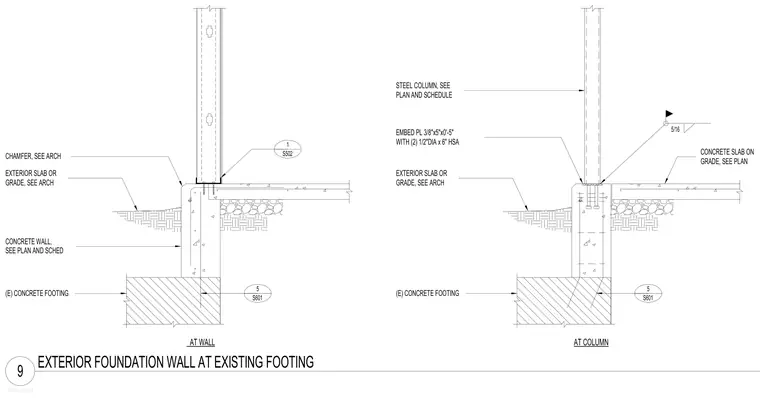

An exterior concrete wall bears directly upon an existing concrete footing, flanked by an exterior slab or grade and an interior concrete slab on grade. A steel column is anchored to the foundation assembly using a three-eighths-inch by five-inch by five-inch embed plate secured with two half-inch diameter by six-inch heavy-duty sleeve anchors. A five-sixteenths fillet weld connects the base assembly while exterior chamfers and slab elevations are coordinated per architectural drawings.
