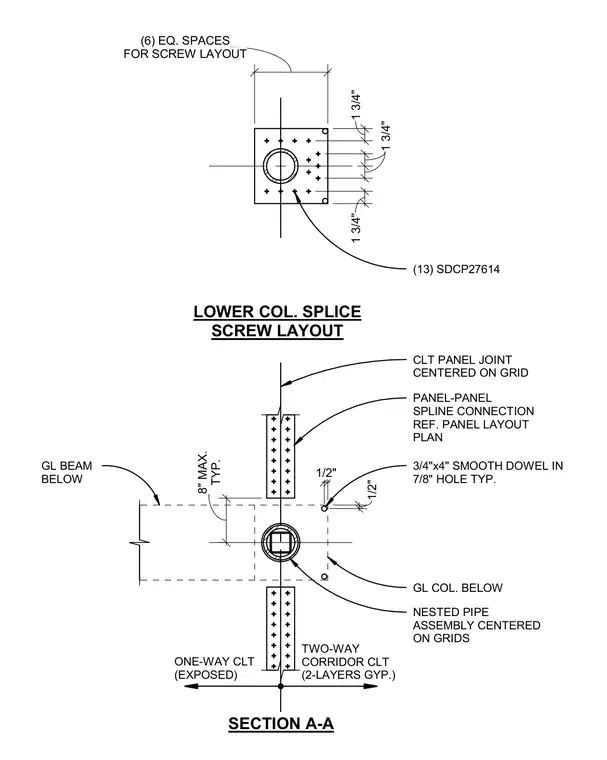

A lower glued-laminated column splice and panel joint connection features a nested pipe assembly centered on the grids. The assembly incorporates a glued-laminated beam below, three-quarter inch by four-inch smooth dowels in seven-eighth inch holes, and panel-to-panel spline connections. Fastening is executed using thirteen SDCP27614 screws arranged in six equal spaces per the screw layout plan. The surrounding construction includes two-way corridor cross-laminated timber with two layers of gypsum board and one-way exposed cross-laminated timber panels.
TWO-WAY CORRIDOR CLT (2-LAYERS GYP.) ONE-WAY CLT (EXPOSED) TYP. 8" MAX. SECTION A-A CLT PANEL JOINT CENTERED ON GRID PANEL-PANEL SPLINE CONNECTION REF. PANEL LAYOUT PLAN GL COL. BELOW GL BEAM BELOW NESTED PIPE ASSEMBLY CENTERED ON GRIDS 3/4"x4" SMOOTH DOWEL IN 7/8" HOLE TYP. 1/2" 1/2" 1 3/4" 1 3/4" 1 3/4" 1 3/4" (13) SDCP27614 FOR SCREW LAYOUT (6) EQ. SPACES LOWER COL. SPLICE SCREW LAYOUT or per plan?
