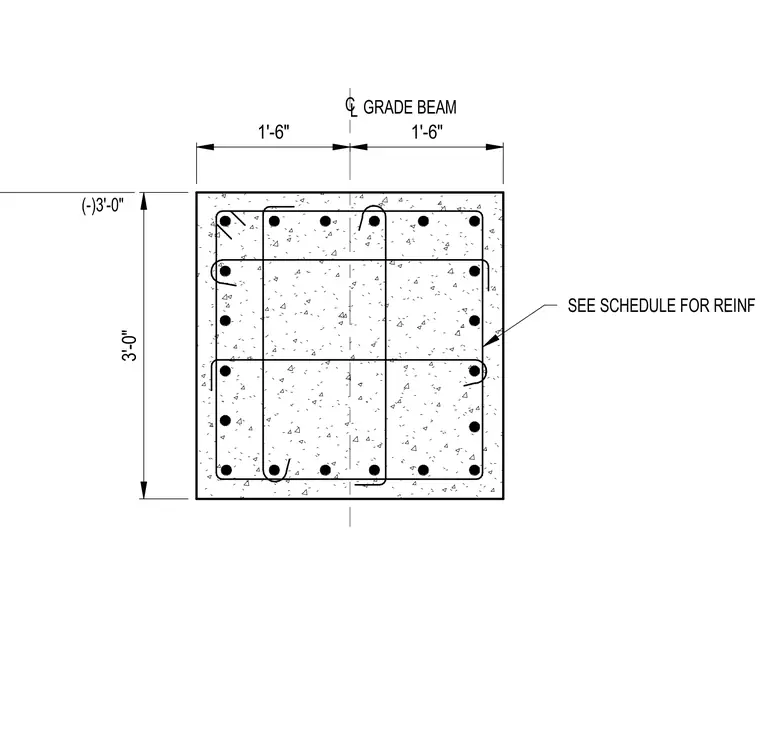

A rectangular reinforced concrete grade beam measures three feet in height by three feet in width, centered along the grade beam centerline. The cross-section features a symmetrical layout with dimensions of one foot six inches on each side from the centerline and a depth of three feet at an elevation of minus three feet. Internal reinforcement comprises multiple longitudinal bars and closed stirrups, with sizes and spacing per the structural schedule.
