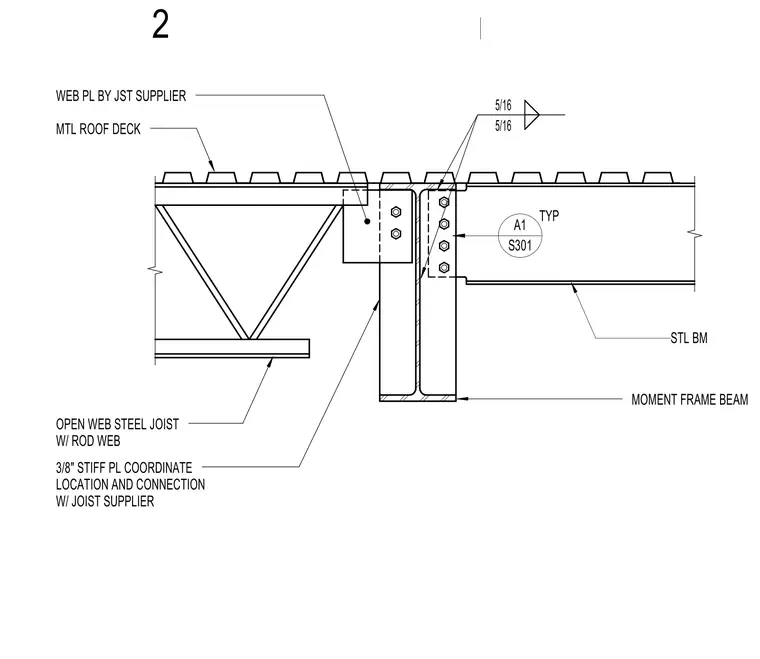

An open web steel joist with rod web framing into a moment frame beam supports a metal roof deck above. A web plate provided by the joist supplier connects the joist to a three-eighths-inch stiffener plate welded to the steel beam web. The steel beam connects with a five-sixteenths-inch fillet weld typical. Location and connection details must be coordinated with the joist supplier.
MTL ROOF DECK WEB PL BY JST SUPPLIER OPEN WEB STEEL JOIST W/ ROD WEB MOMENT FRAME BEAM 3/8" STIFF PL COORDINATE LOCATION AND CONNECTION W/ JOIST SUPPLIER STL BM 5/16 5/16 A1 S301 TYP 2
