Double Hss Post Connection at Spreader Beam and Hoistway

Materials

Concrete Steel Timber / Wood

Elements

Columns Beams Floors / Slabs Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

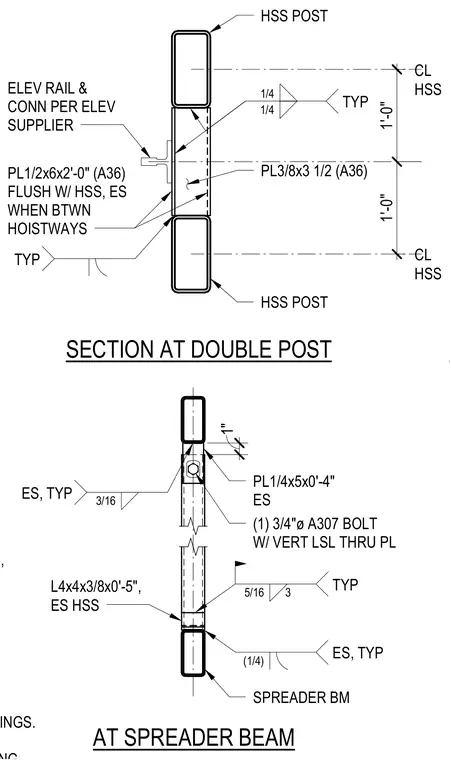

A double hollow structural section post assembly connects at a spreader beam and an elevator hoistway. Two hollow structural section posts are spaced one foot apart on center, tied together with a 3/8-inch by 3-1/2-inch ASTM A36 plate and a 1/2-inch by 6-inch by 2-foot-0-inch ASTM A36 plate flush with the hollow structural sections on each side when located between hoistways. An elevator rail and connection is mounted to the connecting plate per the elevator supplier's drawings, welded with typical quarter-inch fillet welds. The spreader beam connection utilizes a 1/4-inch by 5-inch by 0-foot-4-inch plate on each side, secured with one 3/4-inch diameter ASTM A307 bolt with a vertical slotted hole through the plate on each side, and connects to an L4x4x3/8 by 0-foot-5-inch angle on each side of the hollow structural section using 3/16-inch and 5/16-inch fillet welds.
