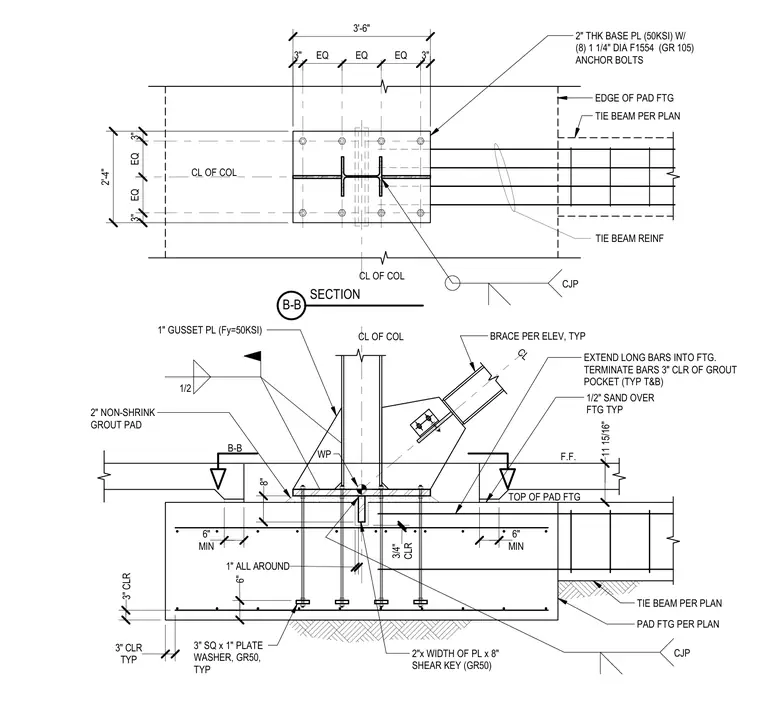

A structural steel column lands on a 2-inch thick Grade 50 base plate secured by eight 1 1/4-inch diameter ASTM F1554 Grade 105 anchor bolts with 3-inch square by 1-inch plate washers. A 1-inch thick Grade 50 gusset plate welded to the column provides the connection for a diagonal brace member sized per elevation. The entire base assembly rests on a 2-inch non-shrink grout pad over a reinforced concrete pad footing and tie beams, featuring an embedded shear key and specified minimum concrete clearances. Longitudinal reinforcing bars extend into the footing and terminate 3 inches clear of the grout pocket.
TYP 3" CLR 3" CLR MIN 6" 6" 3" SQ x 1" PLATE WASHER, GR50, TYP MIN 6" PAD FTG PER PLAN TIE BEAM PER PLAN 1" ALL AROUND 8" CLR 3/4" 2"x WIDTH OF PL x 8" SHEAR KEY (GR50) TOP OF PAD FTG F.F. 1" GUSSET PL (Fy=50KSI) 2" NON-SHRINK GROUT PAD BRACE PER ELEV, TYP EXTEND LONG BARS INTO FTG. TERMINATE BARS 3" CLR OF GROUT POCKET (TYP T&B) CJP 1/2" SAND OVER FTG TYP 11 15/16" 1/2 WP CL B-B CL OF COL TIE BEAM REINF 3'-6" 3" EQ EQ EQ 3" 2'-4" 3" EQ EQ 3" 2" THK BASE PL (50KSI) W/ (8) 1 1/4" DIA F1554 (GR 105) ANCHOR BOLTS EDGE OF PAD FTG TIE BEAM PER PLAN CJP CL OF COL CL OF COL SECTION B-B
