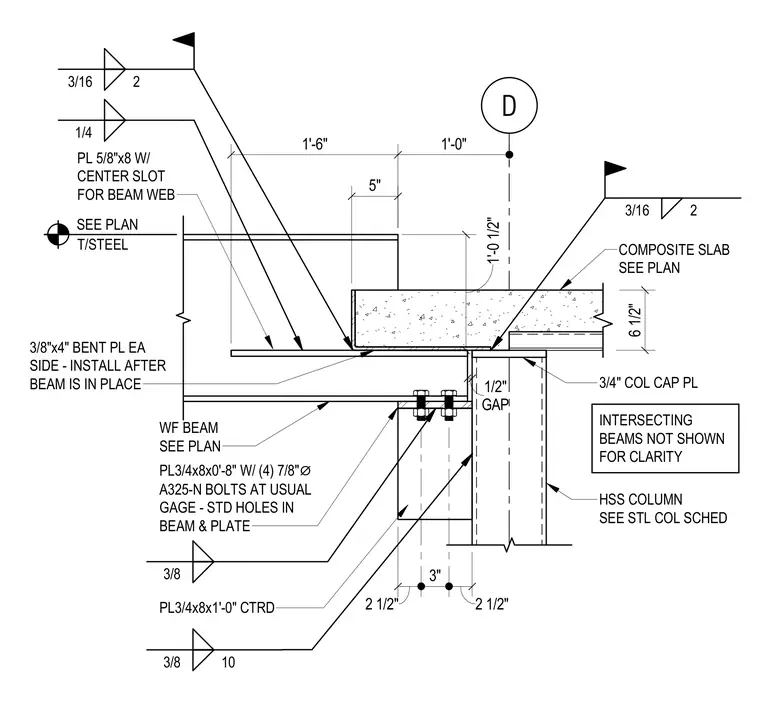

A wide-flange beam connects to a hollow structural section column using a three-quarter-inch column cap plate and a bolted plate assembly. The beam rests on a three-quarter-by-eight-inch plate measuring zero-feet-eight-inches long, secured with four seven-eighth-inch diameter A325-N bolts in standard holes at the usual gauge. A five-eighth-by-eight-inch slotted plate receives the beam web and is welded with quarter-inch and three-sixteenths-inch fillet welds. Three-eighths-by-four-inch bent plates are installed on each side after the beam is in place. A composite slab six-and-one-half inches thick is positioned above, with intersecting beams omitted for clarity.
D 1'-6" 1'-0" 2 1/2" 3" 2 1/2" WF BEAM SEE PLAN PL3/4x8x0'-8" W/ (4) 7/8" ⌀ A325-N BOLTS AT USUAL GAGE - STD HOLES IN BEAM & PLATE 3/8 PL3/4x8x1'-0" CTRD 3/8 10 HSS COLUMN SEE STL COL SCHED 3/4" COL CAP PL INTERSECTING BEAMS NOT SHOWN FOR CLARITY 1'-0 1/2" GAP 1/2" PL 5/8"x8 W/ CENTER SLOT FOR BEAM WEB T/STEEL SEE PLAN 1/4 COMPOSITE SLAB SEE PLAN 3/16 2 3/8"x4" BENT PL EA SIDE - INSTALL AFTER BEAM IS IN PLACE 3/16 2 5" 6 1/2"
