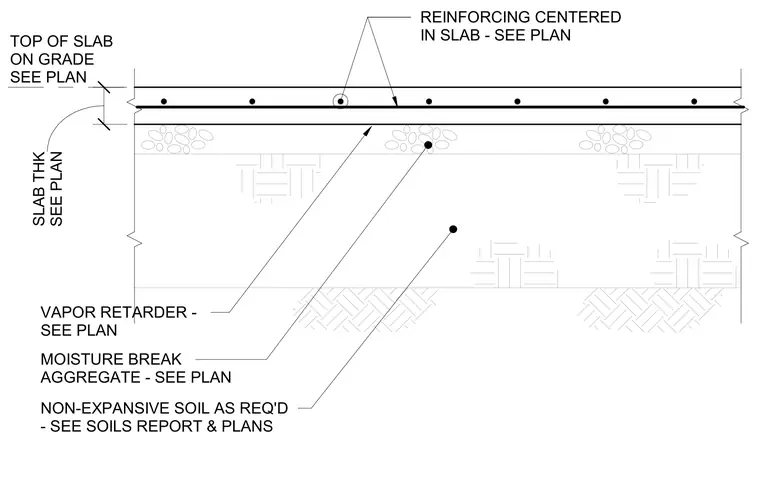

This concrete slab on grade assembly bears on non-expansive soil placed per the soils report and structural plans. A moisture break aggregate layer rests directly on the prepared subgrade, topped with a vapor retarder placed per plan. The concrete slab features reinforcing centered within the section, with slab thickness and top of slab elevations sized per plan.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
