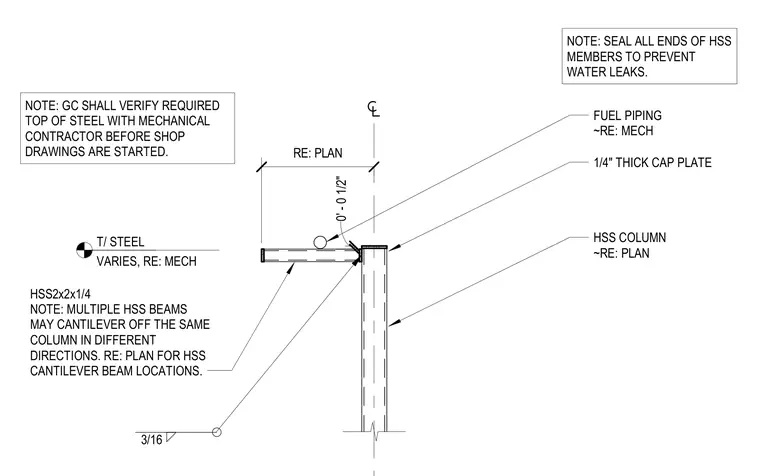

A hollow structural section cantilever beam supports fuel piping and frames into an HSS column topped with a one-quarter-inch thick cap plate. The cantilevered member consists of an HSS2x2x1/4 section with multiple HSS beams extending off the same column in various directions per the architectural and mechanical plans. A three-sixteenths-inch fillet weld secures the connection. All ends of the hollow structural section members are sealed to prevent water leaks, and the general contractor must verify the required top of steel with the mechanical contractor prior to starting shop drawings.
RE: PLAN T/ STEEL VARIES, RE: MECH HSS2x2x1/4 NOTE: MULTIPLE HSS BEAMS MAY CANTILEVER OFF THE SAME COLUMN IN DIFFERENT DIRECTIONS. RE: PLAN FOR HSS CANTILEVER BEAM LOCATIONS. FUEL PIPING ~RE: MECH 3/16 NOTE: GC SHALL VERIFY REQUIRED TOP OF STEEL WITH MECHANICAL CONTRACTOR BEFORE SHOP DRAWINGS ARE STARTED. 1/4" THICK CAP PLATE NOTE: SEAL ALL ENDS OF HSS MEMBERS TO PREVENT WATER LEAKS. HSS COLUMN ~RE: PLAN 0' - 0 1/2"
