Cold-formed steel bypass framing connects to a concrete slab edge and steel beam assembly using a TSN Driftclip DSLB600. The clip is secured with three number twelve TEK screws to accommodate a minimum two inches of in-plane deflection in each direction and one inch of minimum vertical downward deflection. Two zero point one four five inch diameter knurled powder-actuated fasteners anchor each clip into the slab edge per detail seven on sheet S five point four zero. The metal deck orientation varies per structural plans.

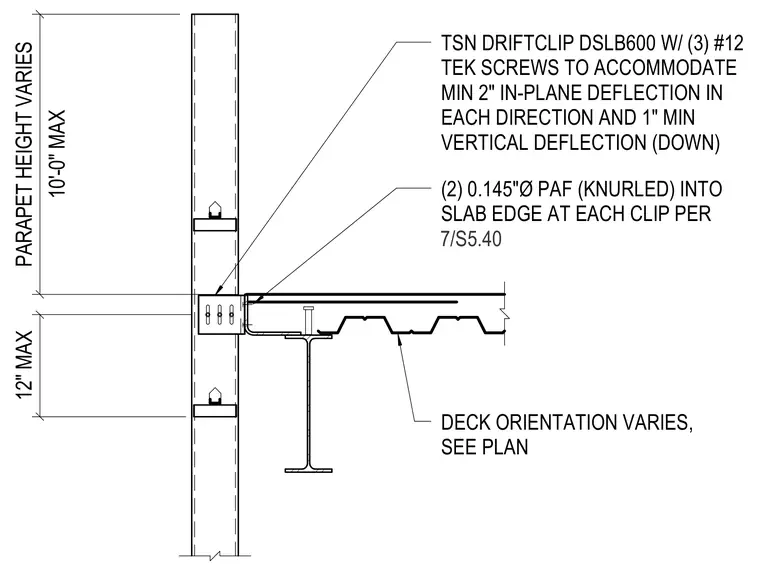

12" MAX 10'-0" MAX PARAPET HEIGHT VARIES TSN DRIFTCLIP DSLB600 W/ (3) #12 TEK SCREWS TO ACCOMMODATE MIN 2" IN-PLANE DEFLECTION IN EACH DIRECTION AND 1" MIN VERTICAL DEFLECTION (DOWN) (2) 0.145"Ø PAF (KNURLED) INTO SLAB EDGE AT EACH CLIP PER 7/S5.40 7/S5.40 DECK ORIENTATION VARIES, SEE PLAN
