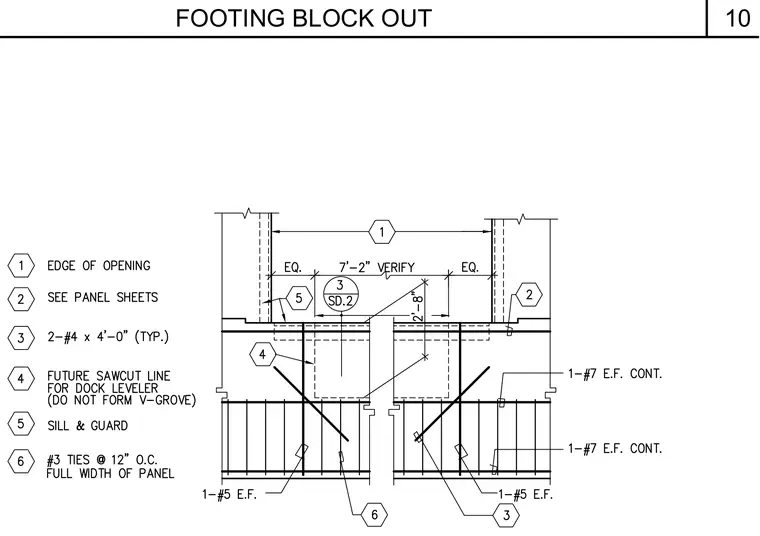

A concrete footing block out is reinforced with continuous number seven bars on each face and number five bars on each face. A future sawcut line for a dock leveler is established with a seven foot two inch dimension, leaving the V-groove unformed. Number three ties are spaced at twelve inches on center across the full width of the panel. Additional reinforcement includes two number four bars by four feet zero inches typical at the opening edges. Sill and guard conditions are coordinated per the panel sheets.
