Structural · S-VJY5A

12-Inch Masonry Wall Corners and Intersections

Materials

Elements

About this detail

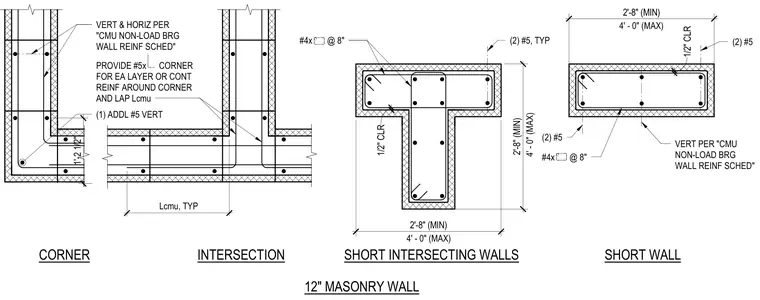

Standard masonry reinforcement configurations for twelve-inch concrete masonry unit walls feature plan views of corners, intersecting walls, short intersecting walls, and short walls. Vertical and horizontal reinforcement is installed per the CMU non-load-bearing wall reinforcement schedule, with specific bar sizes and spacing including number four bars at eight inches on center and pairs of number five vertical bars. Corner and intersection layouts require continuous reinforcing around corners with lap lengths equal to the concrete masonry unit length, plus one additional number five vertical bar at inside corners. Short walls and intersecting segments specify two feet eight inches minimum to four feet maximum dimensions with one-half inch clearances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
