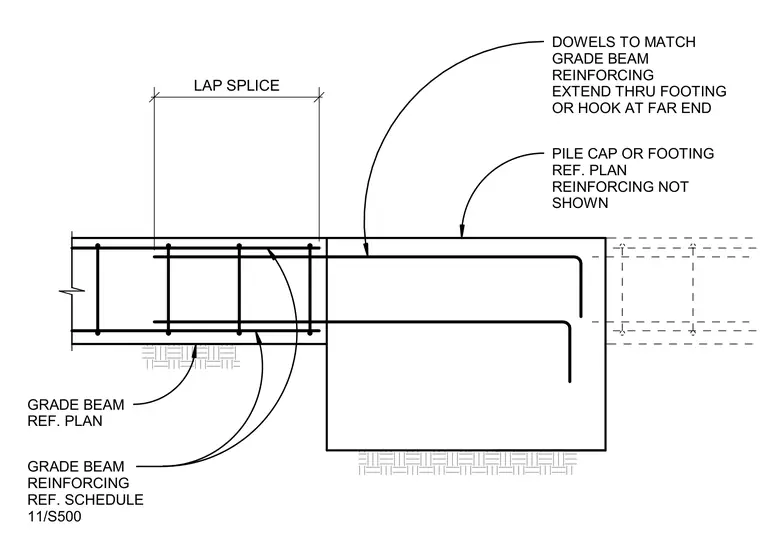

Grade beam reinforcing bars extend into a concrete pile cap or footing with a specified lap splice length. Dowels match the grade beam reinforcing and either extend straight through the footing or hook at the far end. Additional reinforcing is referenced per the structural plan and schedule.
DOWELS TO MATCH GRADE BEAM REINFORCING EXTEND THRU FOOTING OR HOOK AT FAR END PILE CAP OR FOOTING REF. PLAN REINFORCING NOT SHOWN GRADE BEAM REF. PLAN GRADE BEAM REINFORCING REF. SCHEDULE 11/S500 LAP SPLICE
