Structural · S-VJVGH

Buckling-Restrained Braced Frame Column Base Plate Connection

Elements

Connections

Gusset Plate Welded Connection Bolted Connection

About this detail

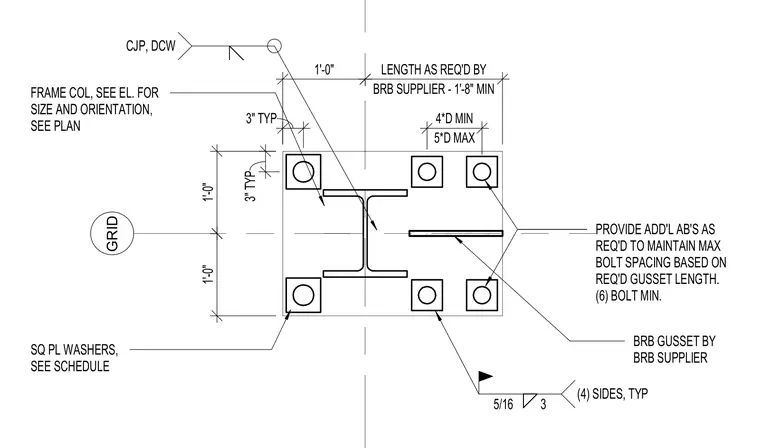

A structural steel frame column connects to a base plate with square plate washers under six anchor bolts minimum. Additional anchor bolts are provided as required to maintain maximum bolt spacing based on the required gusset length. A buckling-restrained brace gusset plate, supplied by the buckling-restrained brace supplier, connects to the assembly with five-sixteenths fillet welds on four sides. A complete-joint-penetration weld with a backing bar connects the column flange. The frame column size and orientation are sized per plan and elevation.
