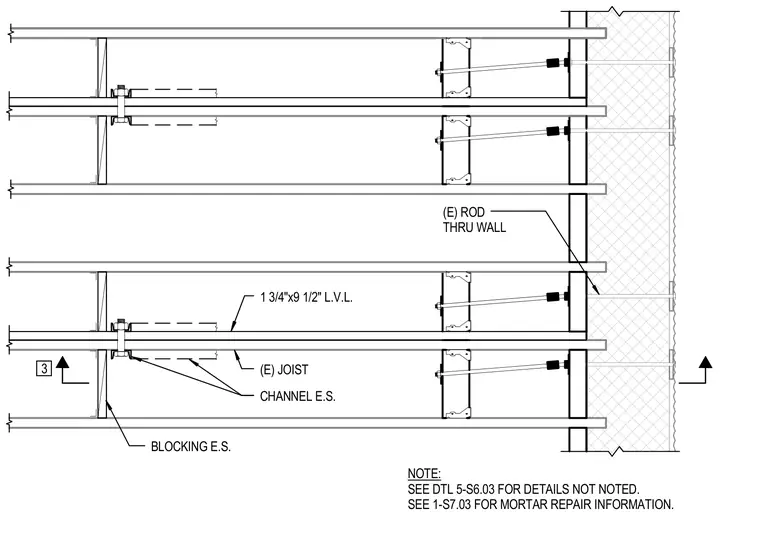

Courtroom wall braces are oriented perpendicular to the framing, featuring existing joists paired with a 1 3/4" by 9 1/2" laminated veneer lumber (LVL) member. Existing channel sections and blocking are placed on each side of the framing. Existing tie rods extend through the exterior wall to provide lateral support.
(E) ROD THRU WALL 3 1 3/4"x9 1/2" L.V.L. NOTE: SEE DTL 5-S6.03 FOR DETAILS NOT NOTED. SEE 1-S7.03 FOR MORTAR REPAIR INFORMATION. (E) JOIST CHANNEL E.S. BLOCKING E.S.
