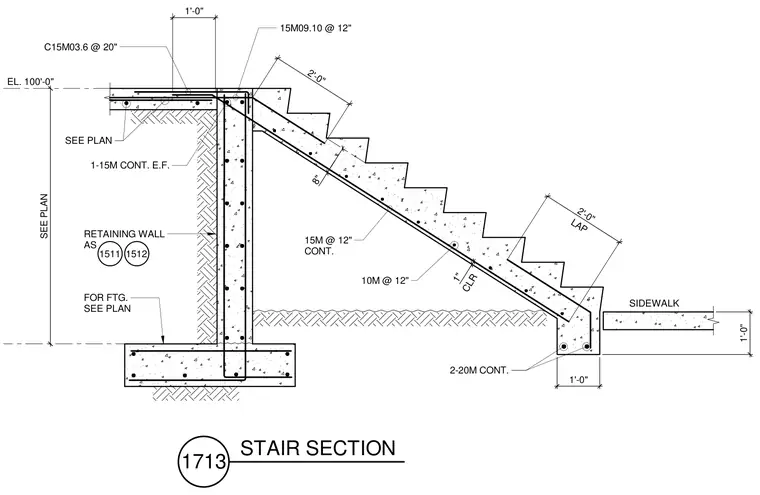

A reinforced concrete stair assembly bears against a vertical retaining wall supported by a continuous concrete footing. The stair slab is reinforced with continuous fifteen-millimeter bars spaced at twelve inches on center and ten-millimeter bars at twelve inches, maintaining a one-inch clearance. The retaining wall incorporates one fifteen-millimeter bar continuous each face, with twenty-millimeter continuous bars at the base. A sidewalk abuts the lower stair landing at an elevation tied to the main foundation level.
15M @ 12" CONT. SEE PLAN 1'-0" 10M @ 12" SIDEWALK 2-20M CONT. EL. 100'-0" SEE PLAN 8" 1'-0" 1'-0" 2'-0" 1" CLR LAP 2'-0" RETAINING WALL AS 1511 1512 1-15M CONT. E.F. C15M03.6 @ 20" FOR FTG. SEE PLAN 15M09.10 @ 12" 1713 STAIR SECTION
