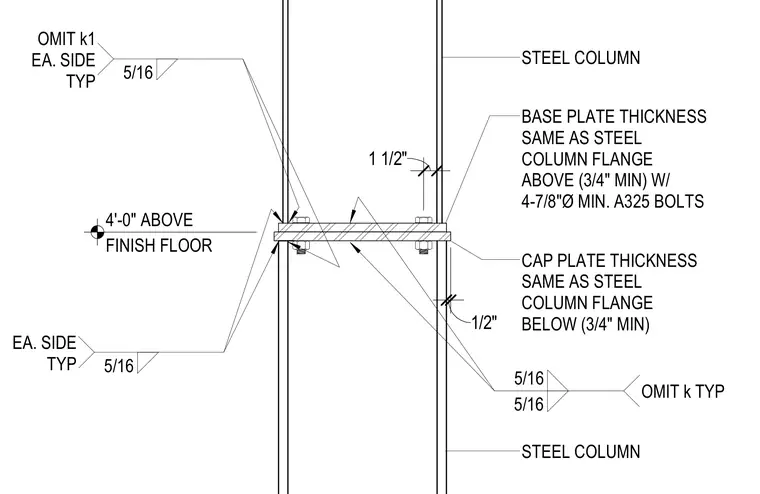

A structural steel column splice connects an upper steel column to a lower steel column located four feet above the finish floor. The assembly features a base plate welded to the upper column and a cap plate welded to the lower column, both matching the respective column flange thickness with a three-quarter inch minimum. Four seven-eighth inch diameter minimum ASTM A325 bolts secure the connection plates together. Fillet welds of five-sixteenth inch size join the plates to the column shafts, with specific instructions to omit the k-dimension weld on typical sides.
STEEL COLUMN STEEL COLUMN BASE PLATE THICKNESS SAME AS STEEL COLUMN FLANGE ABOVE (3/4" MIN) W/ 4-7/8"Ø MIN. A325 BOLTS CAP PLATE THICKNESS SAME AS STEEL COLUMN FLANGE BELOW (3/4" MIN) 1 1/2" 1/2" 4'-0" ABOVE FINISH FLOOR 5/16 EA. SIDE TYP 5/16 5/16 OMIT k TYP 5/16 OMIT k1 EA. SIDE TYP
