Structural · S-VJFCX

Typical Steel Joist Connection to Steel Column

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Decks Arches Bracing Insulation Connections / Plates

Connections

Bracing Connection

About this detail

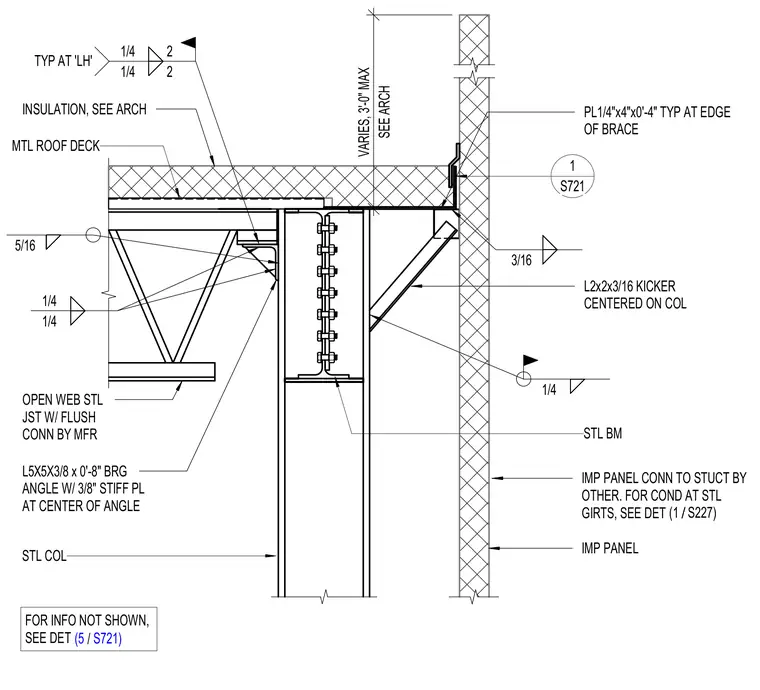

An open web steel joist with a flush connection by the manufacturer bears on an L5x5x3/8 by zero-foot-eight-inch bearing angle with a three-eighths-inch stiffener plate welded at the center of the angle. The steel joist is supported by a steel column, with fillet welds specified at the seat connections. An L2x2x3/16 kicker brace, centered on the steel column, ties back to a plate measuring one-quarter-inch by four inches by zero-foot-four-inches at the edge of the brace. Insulated metal panels and metal roof deck are integrated at the exterior, with panel connections to the structure detailed elsewhere.
