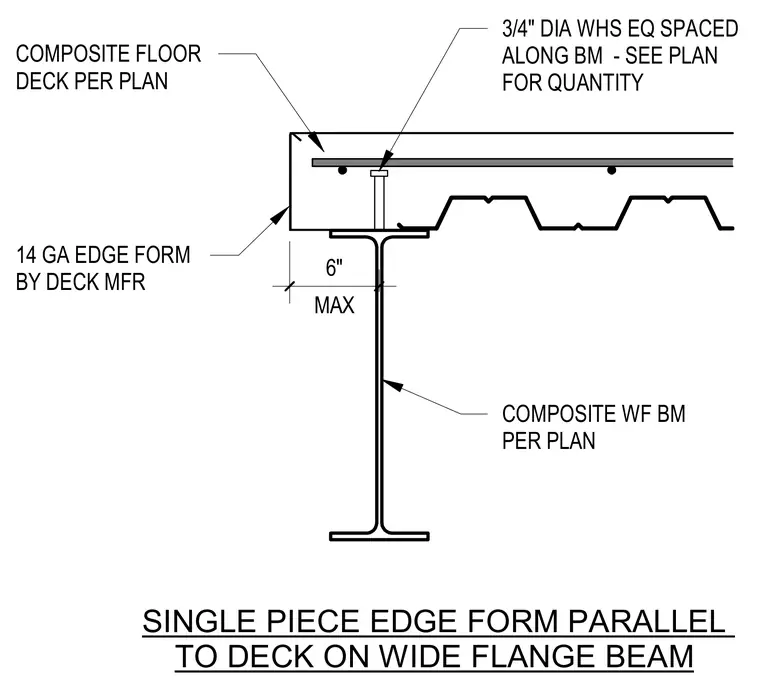

A fourteen-gauge single-piece metal edge form supplied by the deck manufacturer supports the perimeter of the composite floor slab running parallel to the supporting wide-flange beam. The composite floor deck bears on the top flange of the wide-flange beam with a maximum overhang of six inches. Three-quarter-inch diameter welded head stud anchors are spaced equally along the beam flange with quantities sized per plan.
MAX 6" 14 GA EDGE FORM BY DECK MFR COMPOSITE FLOOR DECK PER PLAN 3/4" DIA WHS EQ SPACED ALONG BM - SEE PLAN FOR QUANTITY COMPOSITE WF BM PER PLAN SINGLE PIECE EDGE FORM PARALLEL TO DECK ON WIDE FLANGE BEAM
