Structural · S-VHT3T

Dowels At Cmu Wall

Materials

Masonry / CMU

Elements

Columns Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

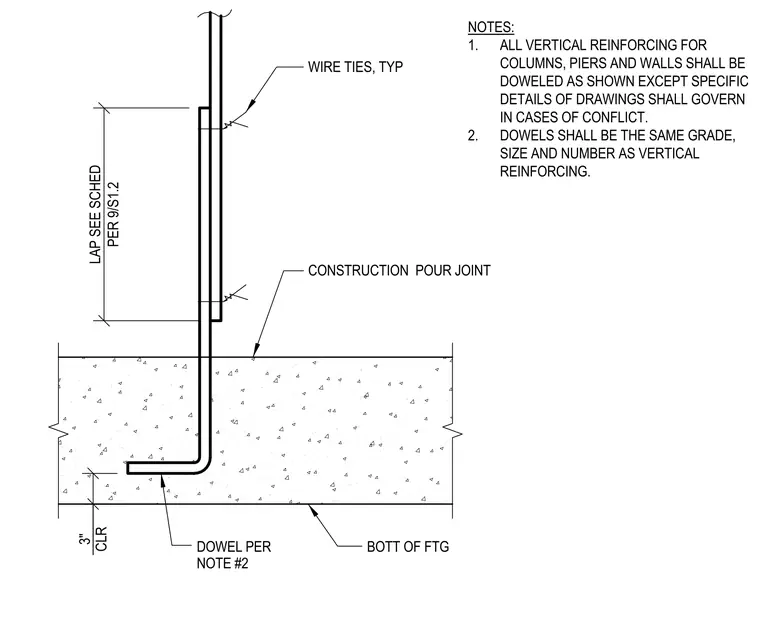

Vertical reinforcing dowels extend from a concrete footing up into a concrete masonry unit wall across a construction pour joint, maintaining a three-inch clear cover at the bottom. Dowels match the grade, size, and number of the vertical reinforcing per note number two, with lap lengths scheduled per sheet S1.2. Typical wire ties secure the masonry units along the vertical extent.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
