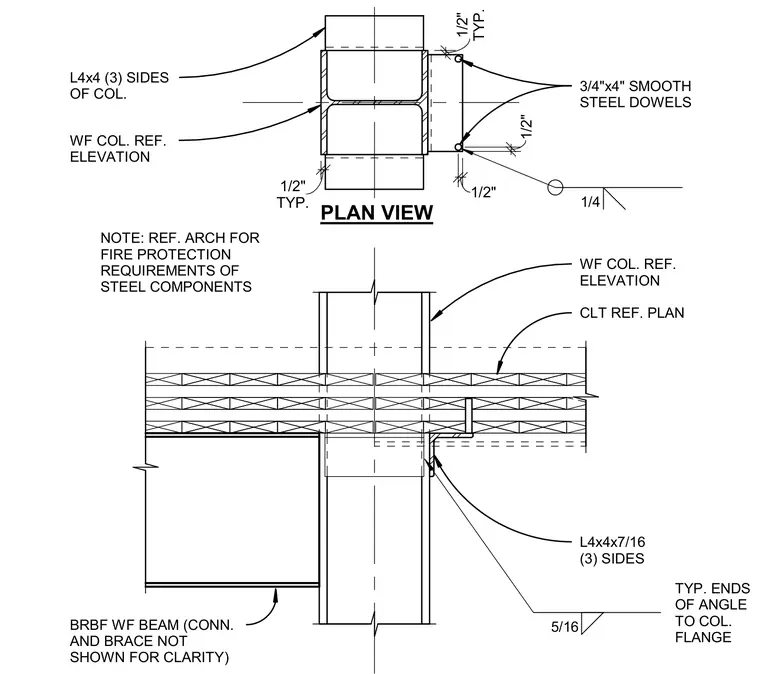

A cross-laminated timber floor plate bears against a wide-flange steel column with three-sided L4x4x7/16 structural angles welded with five-sixteenth-inch fillet welds to the column flange. Three-quarter-inch by four-inch smooth steel dowels tie the assembly together with half-inch typical edge clearances. A wide-flange beam frames into the column below, shown with connection and brace omitted for clarity. A general note directs the builder to reference architectural drawings for fire protection requirements of steel components.
L4x4x7/16 (3) SIDES 3/4"x4" SMOOTH STEEL DOWELS 1/4 1/2" 1/2" TYP. 1/2" TYP. 1/2" 5/16 TYP. ENDS OF ANGLE TO COL. FLANGE WF COL. REF. ELEVATION L4x4 (3) SIDES OF COL. PLAN VIEW WF COL. REF. ELEVATION NOTE: REF. ARCH FOR FIRE PROTECTION REQUIREMENTS OF STEEL COMPONENTS CLT REF. PLAN BRBF WF BEAM (CONN. AND BRACE NOT SHOWN FOR CLARITY)
