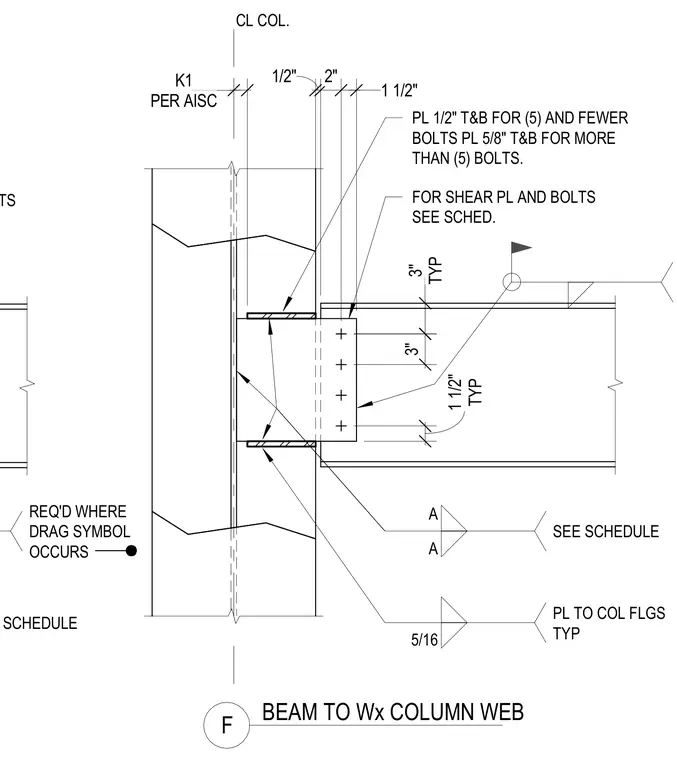

A wide flange beam connects to the web of a wide flange column using a bolted shear plate and top and bottom stiffener plates. The stiffener plates are welded to the column flanges with five-sixteenths-inch fillet welds. The shear plate and bolts are sized per schedule, with one-half-inch top and bottom plates specified for five and fewer bolts, and five-eighths-inch plates for more than five bolts. This connection is required where a drag symbol occurs.
SEE SCHEDULE FOR SHEAR PL AND BOLTS A A SEE SCHEDULE 5/16 PL TO COL FLGS TYP TYP 1 1/2" 3" TYP 3" FOR SHEAR PL AND BOLTS SEE SCHED. PL 1/2" T&B FOR (5) AND FEWER BOLTS PL 5/8" T&B FOR MORE THAN (5) BOLTS. 1/2" 2" 1 1/2" PER AISC K1 CL COL. F BEAM TO Wx COLUMN WEB REQ'D WHERE DRAG SYMBOL OCCURS
