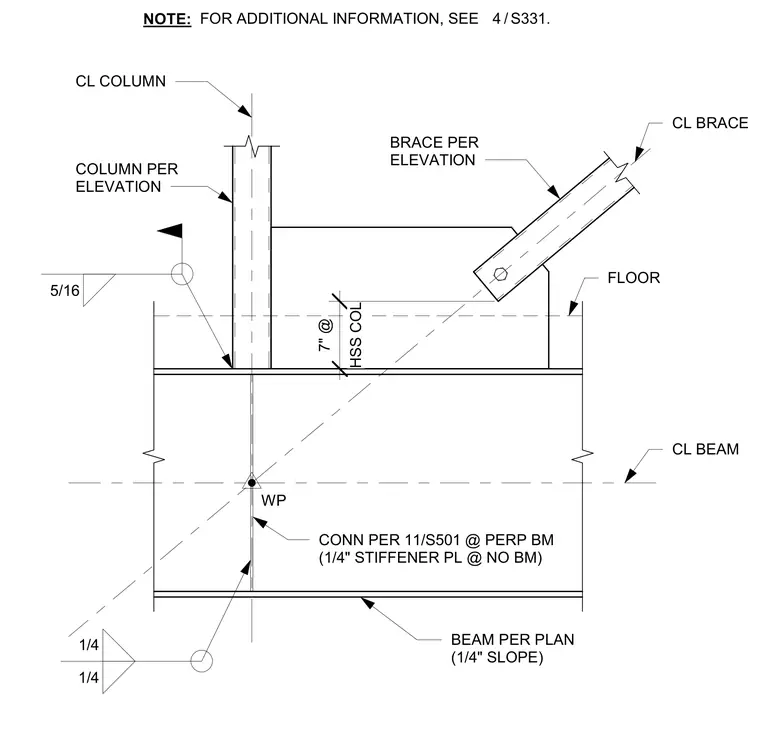

A diagonal brace frames into a gusset plate welded to a hollow structural section column and floor beam assembly. A quarter-inch stiffener plate is provided where no perpendicular beam occurs. Floor connections and beam sizes are sized per plan, with five-sixteenth-inch welds securing the HSS column. Workpoints and centerlines align the intersecting axes of the column, beam, and brace.
BEAM PER PLAN (1/4" SLOPE) COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION WP CL BEAM CL COLUMN 5/16 HSS COL 7" @ NOTE: FOR ADDITIONAL INFORMATION, SEE . / 4 S331 FLOOR CONN PER 11/S501 @ PERP BM (1/4" STIFFENER PL @ NO BM) 1/4 1/4
