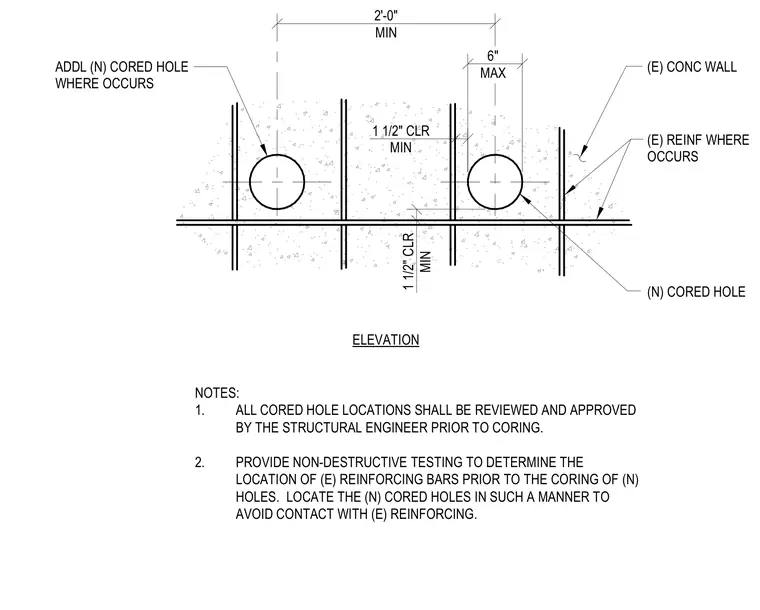

New cored holes are positioned within an existing reinforced concrete wall while maintaining specified clearance from existing reinforcing bars. The layout requires a minimum clearance of one and one-half inches from reinforcing bars, a maximum spacing of six inches, and a minimum spacing of two feet. Non-destructive testing is required prior to coring to locate existing reinforcing bars and avoid contact. All cored hole locations require review and approval by the structural engineer prior to execution.
ELEVATION 2'-0" MIN 6" MAX 1 1/2" CLR MIN 1 1/2" CLR MIN NOTES: 1. ALL CORED HOLE LOCATIONS SHALL BE REVIEWED AND APPROVED BY THE STRUCTURAL ENGINEER PRIOR TO CORING. 2. PROVIDE NON-DESTRUCTIVE TESTING TO DETERMINE THE LOCATION OF (E) REINFORCING BARS PRIOR TO THE CORING OF (N) HOLES. LOCATE THE (N) CORED HOLES IN SUCH A MANNER TO AVOID CONTACT WITH (E) REINFORCING. ADDL (N) CORED HOLE WHERE OCCURS (E) CONC WALL (E) REINF WHERE OCCURS (N) CORED HOLE
