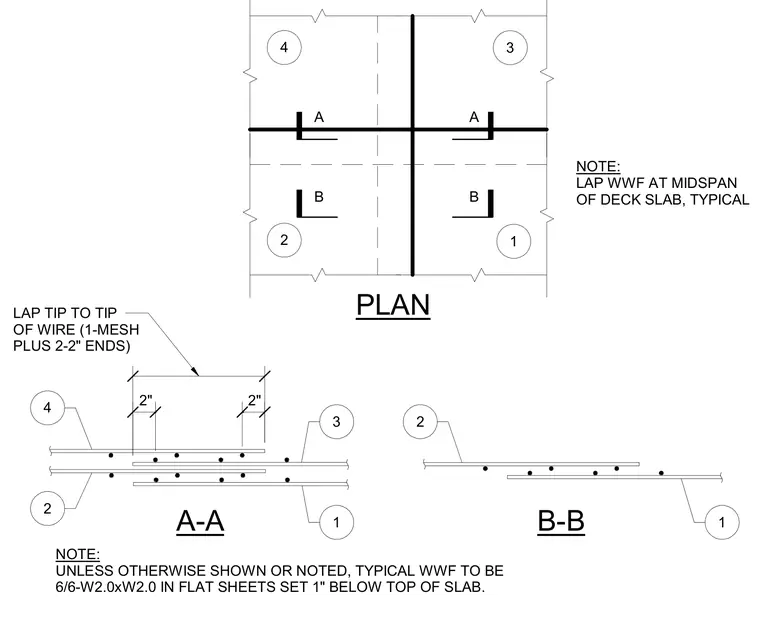

Welded wire fabric is set one inch below the top of the concrete deck slab using flat sheets. Typical welded wire fabric is specified as six by six W two point zero by W two point zero size unless otherwise noted. Wire laps occur at the midspan of the deck slab with tip-to-tip wire placement plus two two-inch ends. Sections A-A and B-B illustrate the overlapping sequence of the wire mesh layers.
2" 2" B A B A A-A PLAN B-B NOTE: UNLESS OTHERWISE SHOWN OR NOTED, TYPICAL WWF TO BE 6/6-W2.0xW2.0 IN FLAT SHEETS SET 1" BELOW TOP OF SLAB. LAP TIP TO TIP OF WIRE (1-MESH PLUS 2-2" ENDS) 2 4 1 3 2 2 1 NOTE: LAP WWF AT MIDSPAN OF DECK SLAB, TYPICAL 1 4 3 . . .
