The concrete steps bear directly against undisturbed earth with minimum dimension requirements for depth and horizontal run. If the excavation ravels or sloughs, the over-excavated space must be backfilled with concrete concurrently when the footing is cast. Reinforcing steel bars are placed within the concrete steps for structural integrity.

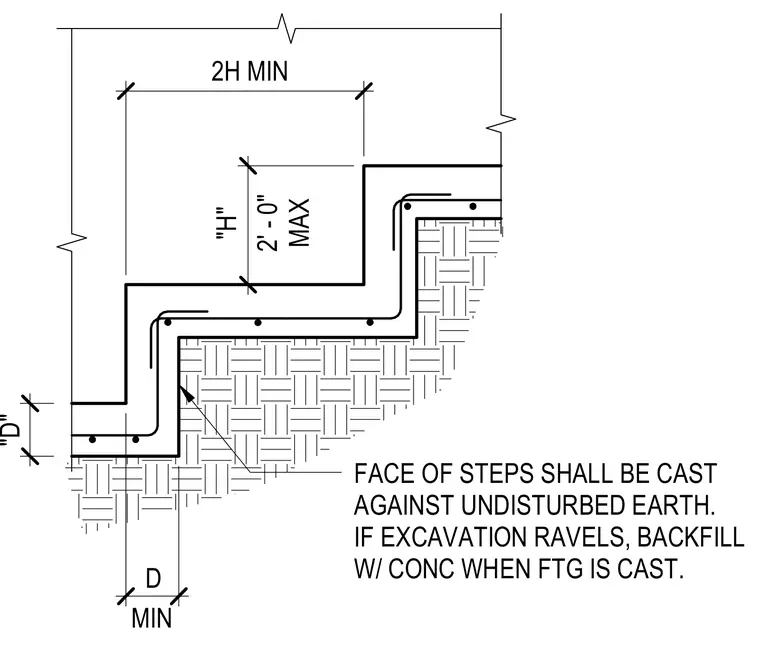

8" 18" 36" FACE OF STEPS SHALL BE CAST AGAINST UNDISTURBED EARTH. IF EXCAVATION RAVELS, BACKFILL W/ CONC WHEN FTG IS CAST. 8" 2H MIN "H" 2' - 0" MAX D MIN "D"
