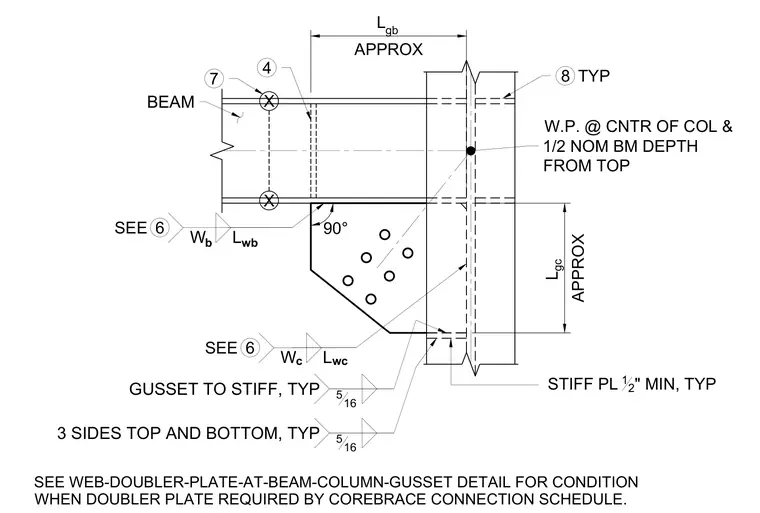

A brace top connection at a beam-column intersection features a gusset plate bolted to a bracing member and welded to adjacent framing. A one-half-inch minimum stiffener plate is welded to the beam and column using five-sixteenth-inch fillet welds on three sides top and bottom typically. The working point is located at the center of the column and one-half of the nominal beam depth from the top flange. Web doubler plates are required per the CoreBrace connection schedule when conditions dictate.
L gc APPROX W.P. @ CNTR OF COL & 1/2 NOM BM DEPTH FROM TOP L gb APPROX BEAM 90° W b 6 SEE 4 X X 7 GUSSET TO STIFF, TYP 516 6 SEE W c STIFF PL 12 " MIN, TYP 3 SIDES TOP AND BOTTOM, TYP 516 8 TYP L wb L wc SEE WEB-DOUBLER-PLATE-AT-BEAM-COLUMN-GUSSET DETAIL FOR CONDITION WHEN DOUBLER PLATE REQUIRED BY COREBRACE CONNECTION SCHEDULE.
