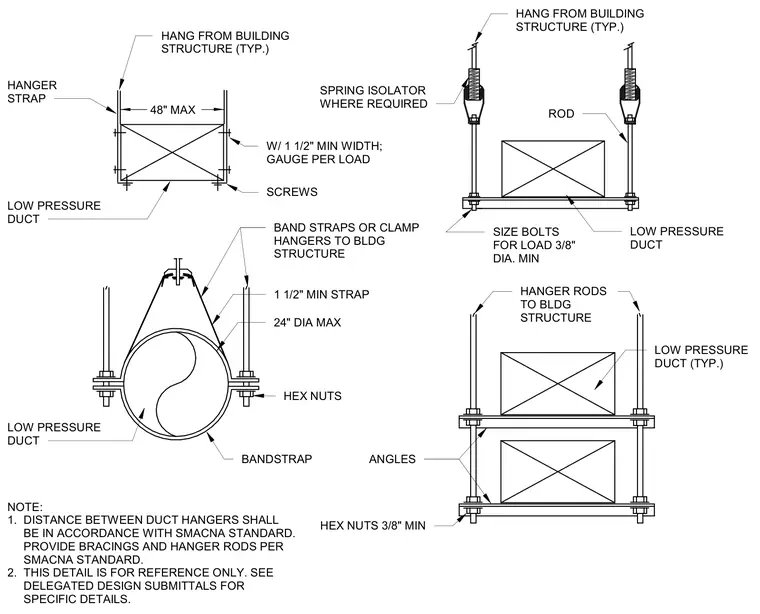

Low pressure ducts are suspended from the building structure using various configurations of hanger straps, threaded rods, and support angles. Strap hangers secure rectangular ducts with screws and a minimum one-and-a-half-inch strap width, with gauge sized per load and a maximum forty-eight-inch spacing. Round ducts utilize band straps or clamp hangers with hex nuts and a maximum twenty-four-inch diameter. Threaded hanger rods connect to the building structure with minimum three-eighths-inch diameter bolts, incorporating spring isolators where required by design.
NOTE: 1. DISTANCE BETWEEN DUCT HANGERS SHALL BE IN ACCORDANCE WITH SMACNA STANDARD. PROVIDE BRACINGS AND HANGER RODS PER SMACNA STANDARD. 2. THIS DETAIL IS FOR REFERENCE ONLY. SEE DELEGATED DESIGN SUBMITTALS FOR SPECIFIC DETAILS. BANDSTRAP HEX NUTS HEX NUTS 3/8" MIN ANGLES ROD 24" DIA MAX 48" MAX SCREWS 1 1/2" MIN STRAP W/ 1 1/2" MIN WIDTH; GAUGE PER LOAD SPRING ISOLATOR WHERE REQUIRED HANGER STRAP HANG FROM BUILDING STRUCTURE (TYP.) HANG FROM BUILDING STRUCTURE (TYP.) LOW PRESSURE DUCT LOW PRESSURE DUCT SIZE BOLTS FOR LOAD 3/8" DIA. MIN HANGER RODS TO BLDG STRUCTURE BAND STRAPS OR CLAMP HANGERS TO BLDG STRUCTURE LOW PRESSURE DUCT LOW PRESSURE DUCT (TYP.)
