Structural · S-VGZVK

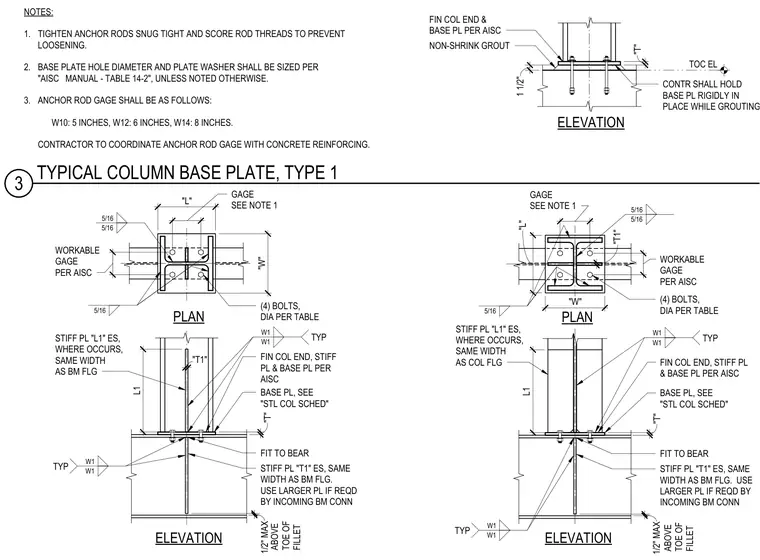

Typical Column Base Plate, Type 1

Materials

Concrete Steel Masonry / CMU

Elements

Columns Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Bolted Connection

About this detail

A structural steel column base plate connection is supported by a concrete foundation or member with non-shrink grout beneath the plate. The steel column features finished ends, stiffener plates ('T1' and 'L1') matching the flange widths, and five-sixteenths inch fillet welds. Four anchor bolts secure the base plate, with workable gauges sized per AISC standards. General notes require anchor rods to be tightened snug tight and threads scored to prevent loosening. The contractor must hold the base plate rigidly in place during grouting and coordinate anchor rod gauges with concrete reinforcing.
