Structural · S-VGP8Q

Foundation Pile Cap and Slab on Grade Details

Materials

Concrete Reinforced Concrete

Elements

Columns Walls Shear Walls Ramps Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

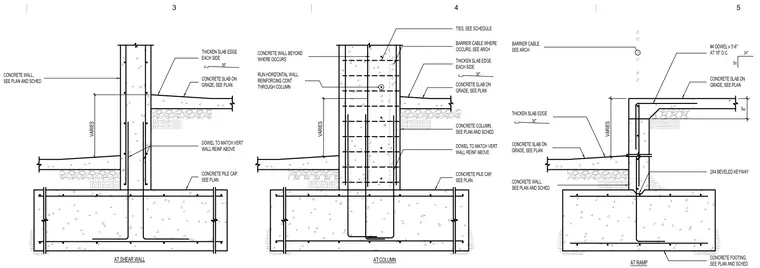

These structural details illustrate concrete slab on grade conditions bearing on concrete pile caps and footings at shear walls, columns, and ramps. The concrete slab on grade features a thickened edge measuring two inches by thirty-six inches on each side, tying into the vertical elements. Dowels sized #4 at eighteen inches on center and matching vertical wall reinforcement extend from the pile cap and footings to tie into the walls above. Horizontal wall reinforcing runs continuous through the column, with ties placed per schedule. A two-by-four beveled keyway is provided at the footing interface, and barrier cables are included where noted per architectural plans.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
