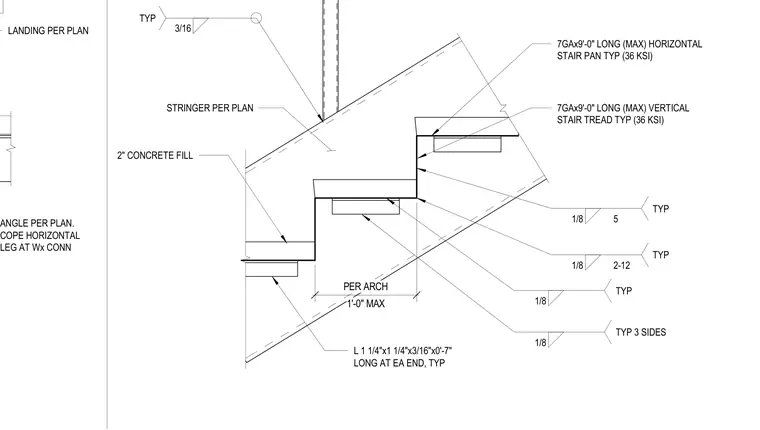

Steel stair construction featuring seven-gauge horizontal stair pans and vertical stair treads fabricated from 36 KSI steel with a maximum length of nine feet. Each tread receives a two-inch concrete fill per architectural specifications. The stair pans connect to typical stringers sized per plan using angle connections measuring one and one-quarter inches by one and one-quarter inches by three-sixteenths of an inch by seven inches long at each end, welded with typical one-eighth-inch fillet welds on three sides. Horizontal legs are coped at wide-flange connections where required.
LANDING PER PLAN ANGLE PER PLAN. COPE HORIZONTAL LEG AT Wx CONN 1/8 5 TYP 1/8 2-12 TYP 1/8 TYP 1/8 TYP 3 SIDES L 1 1/4"x1 1/4"x3/16"x0'-7" LONG AT EA END, TYP STRINGER PER PLAN 3/16 TYP 7GAx9'-0" LONG (MAX) HORIZONTAL STAIR PAN TYP (36 KSI) 2" CONCRETE FILL 7GAx9'-0" LONG (MAX) VERTICAL STAIR TREAD TYP (36 KSI) 1'-0" MAX PER ARCH
