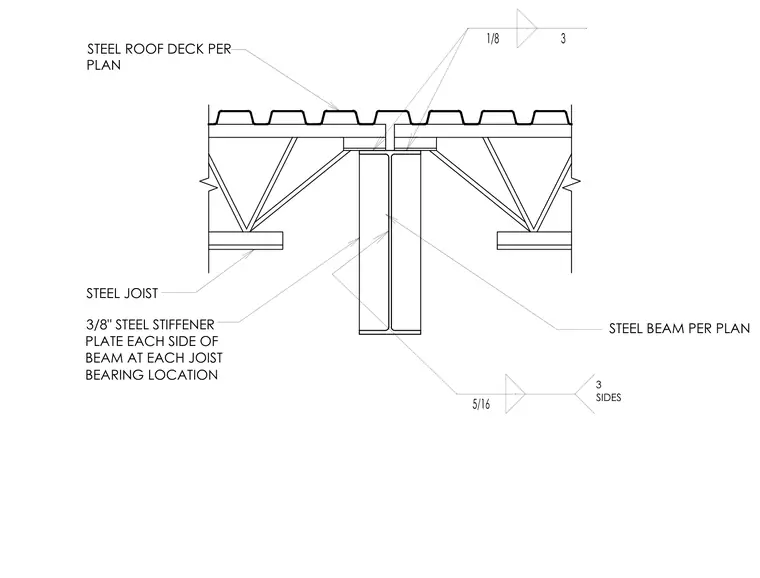

Steel joists bear directly onto the top flange of a steel beam sized per plan beneath a steel roof deck. Three-eighths-inch steel stiffener plates are welded to each side of the beam web at each joist bearing location. Fillet welds secure the connection assembly.
STEEL JOIST 3/8" STEEL STIFFENER PLATE EACH SIDE OF BEAM AT EACH JOIST BEARING LOCATION STEEL BEAM PER PLAN 3 SIDES STEEL ROOF DECK PER PLAN
