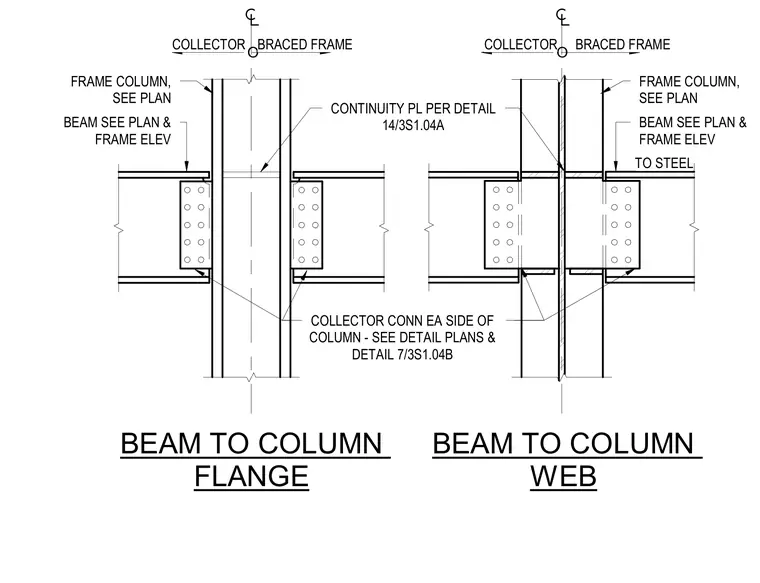

The framing elevation details show steel beams connecting to both the flange and the web of a structural steel frame column within a braced frame system. Continuity plates are provided at the beam flange levels per detail 14/3S1.04A. Collector connections are detailed on each side of the column with sizes and configurations specified per plans and frame elevations.
COLLECTOR CONN EA SIDE OF COLUMN - SEE DETAIL PLANS & DETAIL 7/3S1.04B BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL PER DETAIL 14/3S1.04A O BRACED FRAME COLLECTOR TO STEEL BEAM TO COLUMN FLANGE BEAM TO COLUMN WEB O BRACED FRAME COLLECTOR BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN
